LPF-B500+ - Mini-Circuits

Description: Signal Conditioning Lumped LC Low Pass Filter, DC - 500 MHz, 50ohm

Download LPF-B500+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

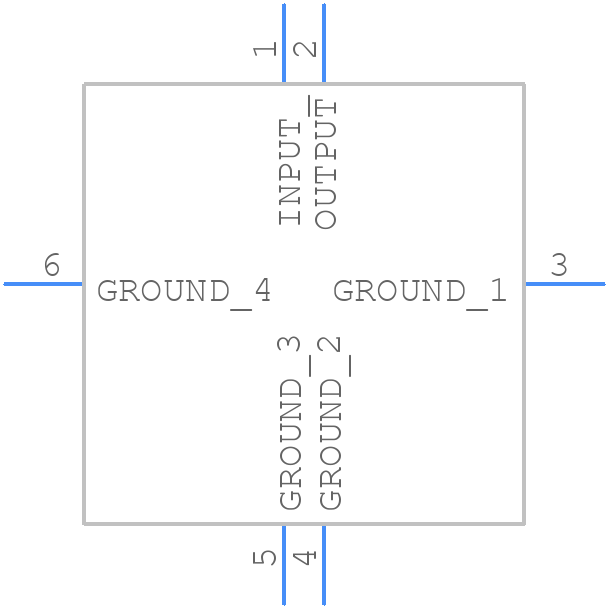

Symbol
LPF-B500+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
LPF-B500+ - Mini-Circuits PCB footprint - Other - Other - LPF-B500+-1
click to zoom
3D Models
LPF-B500+ - Mini-Circuits - 3D model - Other - LPF-B500+-1
click to zoom

LPF-B500+ Details

  • Manufacturer Part Number:

    LPF-B500+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    India

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7.1

  • Average Input Power:

    1.25 W

  • Center or Cutoff Frequency (fo/fc):

    515 MHz

  • Filter Type:

    LOW PASS FILTER

  • Height:

    5.59 mm

  • Input Connector:

    SMA FEMALE

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    2 dB

  • Length:

    20.98 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Sections-Max:

    1

  • Number of Sections-Min:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Connector:

    SMA FEMALE

  • Output Impedance:

    50 OHM Ω

  • Packing Method:

    TR, 13 INCH

  • VSWR:

    1.7

  • Width:

    11.99 mm

LPF-B500+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • Impedance matching can be achieved using a pi-network or a T-network of resistors and capacitors. Mini-Circuits provides a impedance matching calculator on their website, which can help you determine the required component values.
  • The maximum power handling of the LPF-B500+ is not explicitly stated in the datasheet, but according to Mini-Circuits' application notes, it can handle up to 10W of continuous power. However, it's recommended to derate the power handling based on the operating frequency and environmental conditions.
  • The LPF-B500+ is rated for operation up to 65°C, but it can be used in higher temperature environments with some derating. Mini-Circuits provides a temperature derating curve in their application notes, which can help you determine the maximum power handling at elevated temperatures.
  • Common issues with the LPF-B500+ include poor frequency response, high insertion loss, and overheating. Troubleshooting steps include checking the PCB layout and footprint, ensuring proper impedance matching, and verifying the power handling. Mini-Circuits also provides a troubleshooting guide on their website.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LPF-B500+ Overview

Use the download button to access the LPF-B500+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LPF-B, or try a keyword search, such as General Purpose Passive Filters

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
