A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and EMI.
Use a thermal pad or thermal vias to dissipate heat from the device. Ensure good airflow and avoid blocking the airflow around the device. Also, follow the recommended operating conditions and derating guidelines.
The maximum allowable voltage on the input pins is 5.5V, which is the absolute maximum rating. However, it's recommended to keep the input voltage within the recommended operating range of 3.3V ± 10% to ensure reliable operation.
The LPJ4013EDNL is a commercial-grade device, and its reliability and performance may not meet the requirements of high-reliability or safety-critical applications. It's recommended to consult with the manufacturer or a qualified reliability engineer to determine the suitability of this device for such applications.
Start by reviewing the datasheet and application notes to ensure correct usage and configuration. Then, use a logic analyzer or oscilloscope to debug the device's behavior. Check for proper power supply, clock signal, and input signal integrity. If the issue persists, contact the manufacturer's technical support for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LPJ4013EDNL Overview

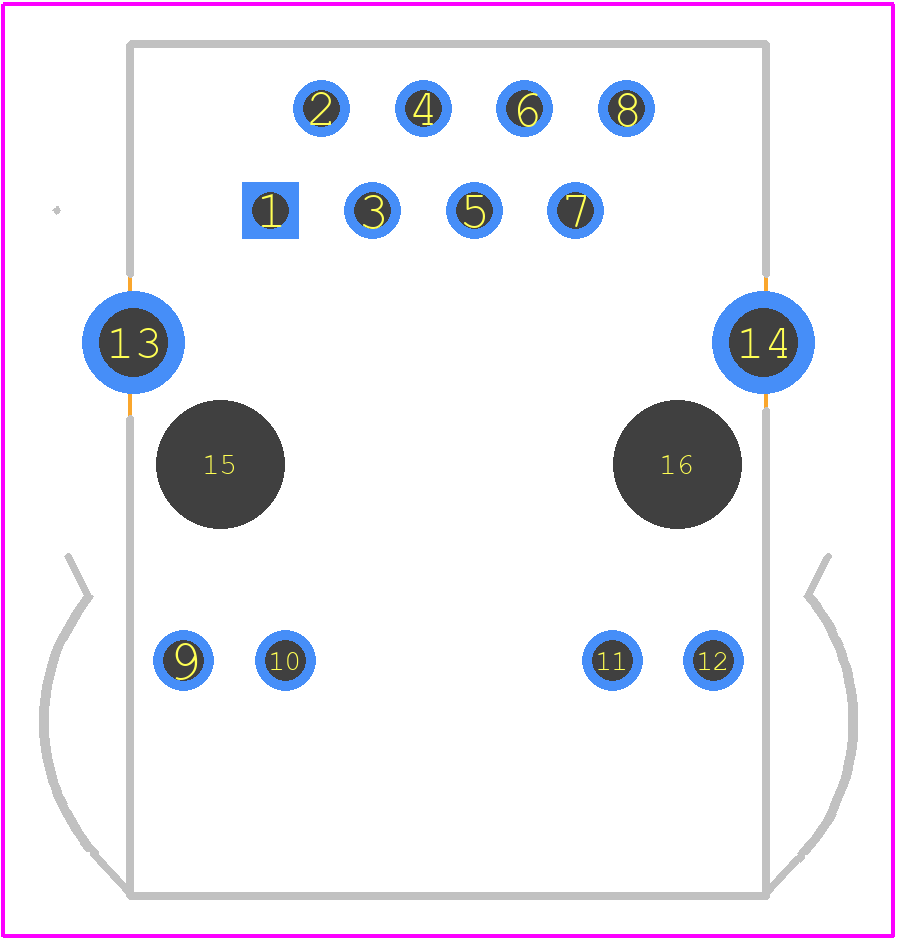

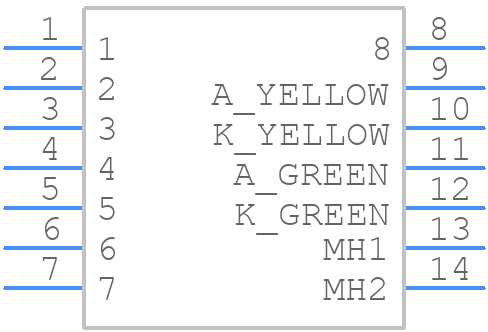

Use the download button to access the LPJ4013EDNL schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like LPJ40,
or try a keyword search, such as Telecom and Datacom Connectors
