The recommended PCB layout for the LPJK7001AGNL is to follow a 4-layer stackup with a solid ground plane, and to keep the input and output traces as short as possible. Additionally, it's recommended to use a common mode choke and a shielded inductor to reduce EMI.
To ensure the LPJK7001AGNL operates within the specified temperature range, it's essential to provide adequate heat sinking and thermal management. This can be achieved by using a heat sink with a thermal conductivity of at least 1 W/m-K and ensuring good airflow around the device.
The maximum allowable voltage deviation on the input pins of the LPJK7001AGNL is ±10% of the nominal input voltage. Exceeding this deviation may affect the device's performance and reliability.
The LPJK7001AGNL is not designed for use in high-humidity environments. If operation in such environments is necessary, it's recommended to use conformal coating or potting to protect the device from moisture.
The recommended input capacitor value for the LPJK7001AGNL is 10uF to 22uF, with a voltage rating of at least 25V. A low-ESR ceramic capacitor, such as an X5R or X7R type, is recommended for optimal performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LPJK7001AGNL Overview

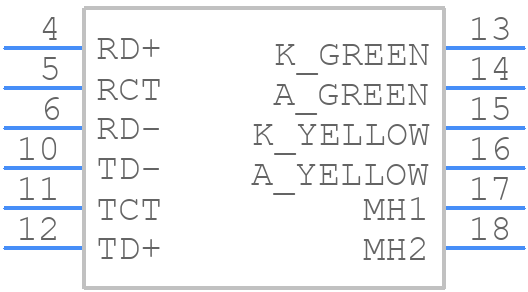

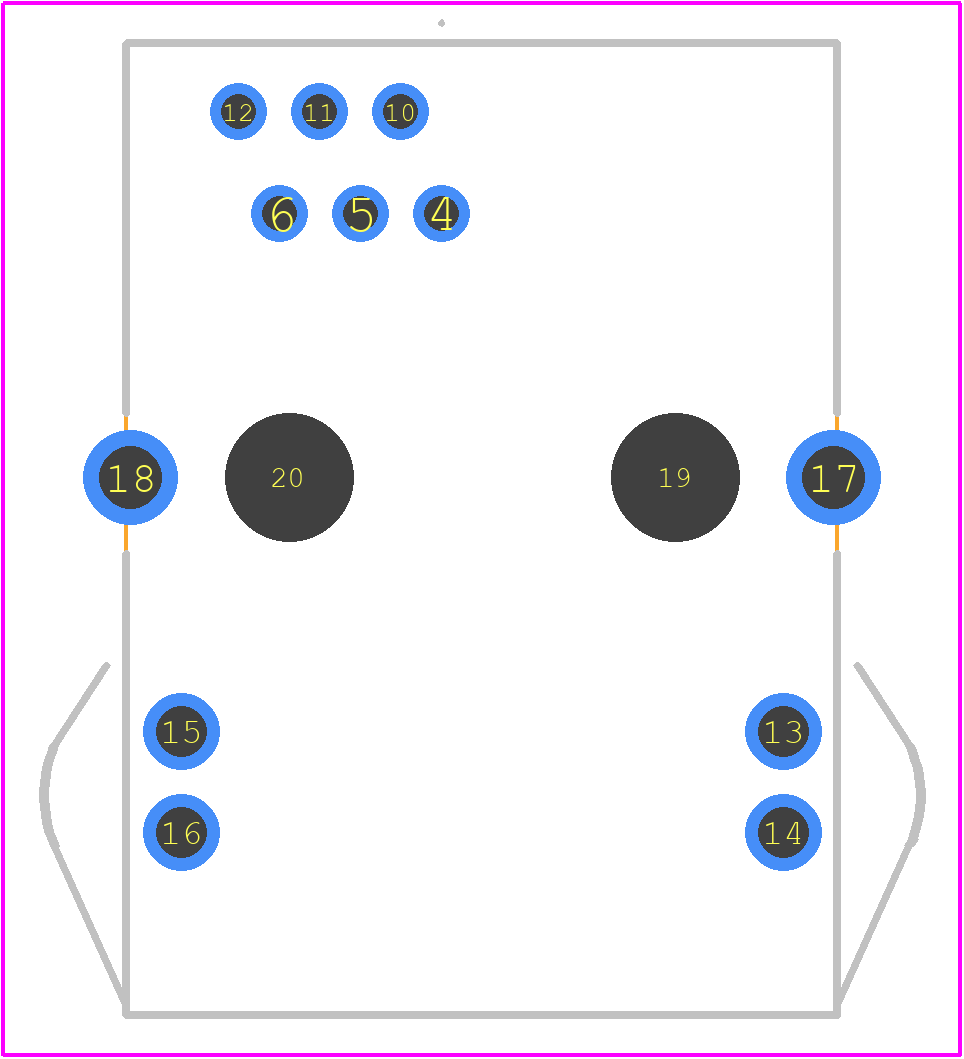

Use the download button to access the LPJK7001AGNL schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like LPJK7,
or try a keyword search, such as Telecom and Datacom Connectors
