- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for LPR403AL
- Part Number LPR403AL
- Manufacturer STMicroelectronics
- Pin Count 28
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - LGA28R50P8X6_500X400X100
- Released Date Jan 12, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
LPR403AL Details
-
Manufacturer Part Number:
LPR403AL
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
LGA
-
Package Description:
4 X 5 MM, 1 MM HEIGHT, GREEN, LGA-28
-
Pin Count:
28
-
HTS Code:
8542.39.00.01
-
Manufacturer:
STMicroelectronics
-
YTEOL:
0
-
Analog IC - Other Type:
ANALOG CIRCUIT
LPR403AL Frequently Asked Questions (FAQs)
-
STMicroelectronics provides a recommended PCB layout in the application note AN2663, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
-
The LPR403AL has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane on the PCB to dissipate heat. A thermal interface material (TIM) can be used to improve heat transfer between the device and the PCB.
-
The recommended input capacitor value for LPR403AL is 10uF to 22uF, with a voltage rating of at least 25V. The capacitor should be placed as close as possible to the VIN pin to minimize noise and ensure stable operation.
-
The LPR403AL is rated for operation up to 125°C, but the device's performance and reliability may be affected at high temperatures. It's recommended to derate the output current and voltage according to the temperature derating curve provided in the datasheet.
-
To ensure the stability of the LPR403AL output voltage, it's recommended to use a minimum output capacitor value of 10uF, with a low ESR (Equivalent Series Resistance) and a voltage rating of at least 2.5V. The output capacitor should be placed as close as possible to the VOUT pin.
Trust Checks
System Verified
LPR403AL Overview

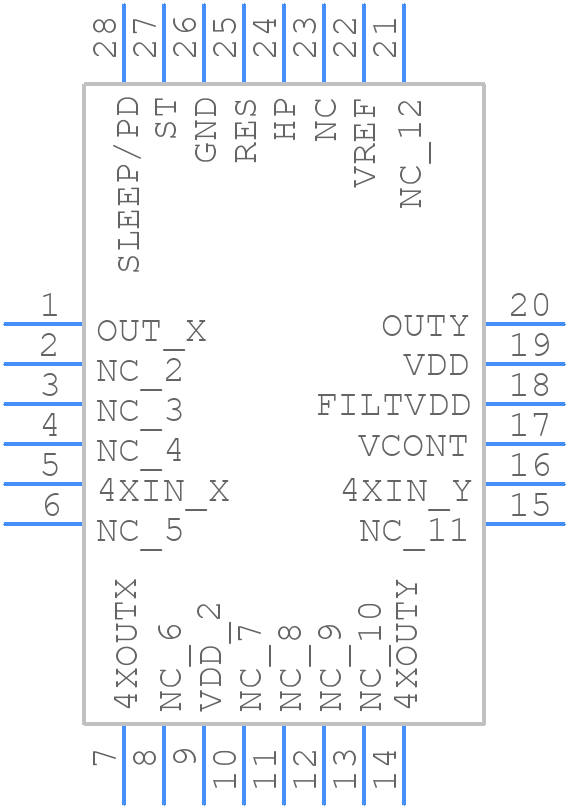

Use the download button to access the LPR403AL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LPR40,
or try a keyword search, such as Other Signal Circuits
