LPS25HBTR - STMicroelectronics

Description: MEMS pressure sensor: 260-1260 hPa absolute digital output barometer

Download LPS25HBTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

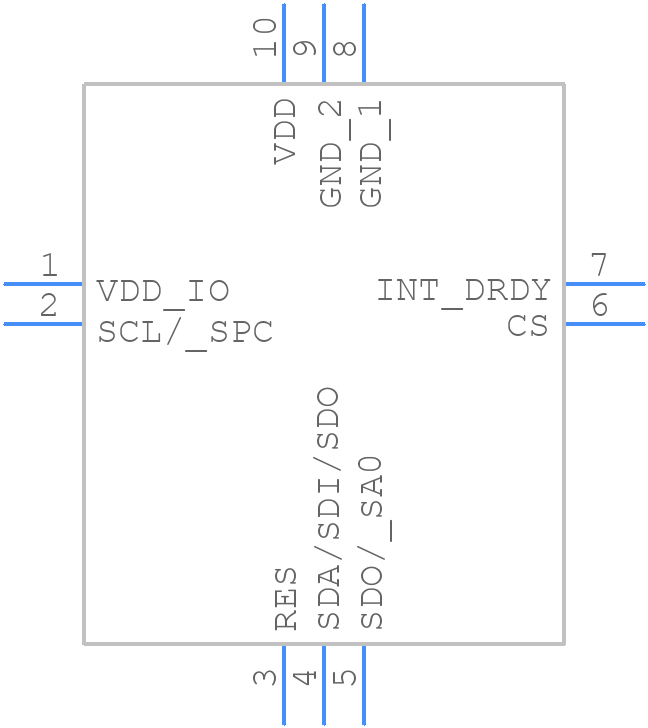

LPS25HBTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
LPS25HBTR - STMicroelectronics PCB footprint - Other - Other - HLGA-10L_2021
click to zoom
3D Models
LPS25HBTR - STMicroelectronics - 3D model - Other - HLGA-10L_2021
click to zoom

LPS25HBTR Details

  • Manufacturer Part Number:

    LPS25HBTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HLGA-10

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7

  • Additional Feature:

    IT ALSO HAVE OUTPUT INTERFACE 3-WIRE INTERFACE

  • Body Breadth:

    2.5 mm

  • Body Height:

    0.8 mm

  • Body Length or Diameter:

    2.5 mm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    24

  • Operating Current-Max:

    0.025 mA

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -30 °C

  • Output Interface Type:

    4-WIRE INTERFACE

  • Output Type:

    DIGITAL OUTPUT

  • Package Shape/Style:

    SQUARE

  • Port Type:

    HOLE

  • Pressure Range-Max:

    18.27 Psi

  • Pressure Range-Min:

    3.77 Psi

  • Pressure Sensing Mode:

    ABSOLUTE

  • Sensors/Transducers Type:

    PRESSURE SENSOR,PIEZORESISTIVE

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Gold (Ni/Au) - electrolytic

  • Termination Type:

    SOLDER

LPS25HBTR Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the LPS25HBTR involves placing the sensor at the center of the PCB, with a solid ground plane underneath to minimize noise and electromagnetic interference. The sensor's pins should be connected to the PCB using a star-configuration to reduce noise and ensure accurate readings.
  • The LPS25HBTR does not require calibration out of the box, as it is factory-calibrated. However, if you need to recalibrate the sensor, you can use the built-in calibration function by applying a known pressure and temperature to the sensor and then reading the output values. You can then use these values to calculate the calibration coefficients.
  • The LPS25HBTR can operate within a temperature range of -40°C to 85°C. However, the sensor's accuracy and performance may degrade at extreme temperatures. It's recommended to operate the sensor within a temperature range of 0°C to 60°C for optimal performance.
  • To minimize noise and EMI, use a solid ground plane, keep the sensor away from high-frequency components, and use a low-pass filter to filter out high-frequency noise. You can also use shielding and grounding techniques to reduce EMI.
  • The recommended power supply voltage for the LPS25HBTR is 1.71V to 3.6V. However, the sensor can operate with a power supply voltage as low as 1.5V, but the accuracy and performance may degrade at lower voltages.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LPS25HBTR Overview

Use the download button to access the LPS25HBTR schematic symbol, PCB footprint, and 3D model.
