LPTA2,5/6-5,0 footprint, schematic symbol and 3D model by Phoenix Contact

Symbol

click to zoom

PCB Footprints

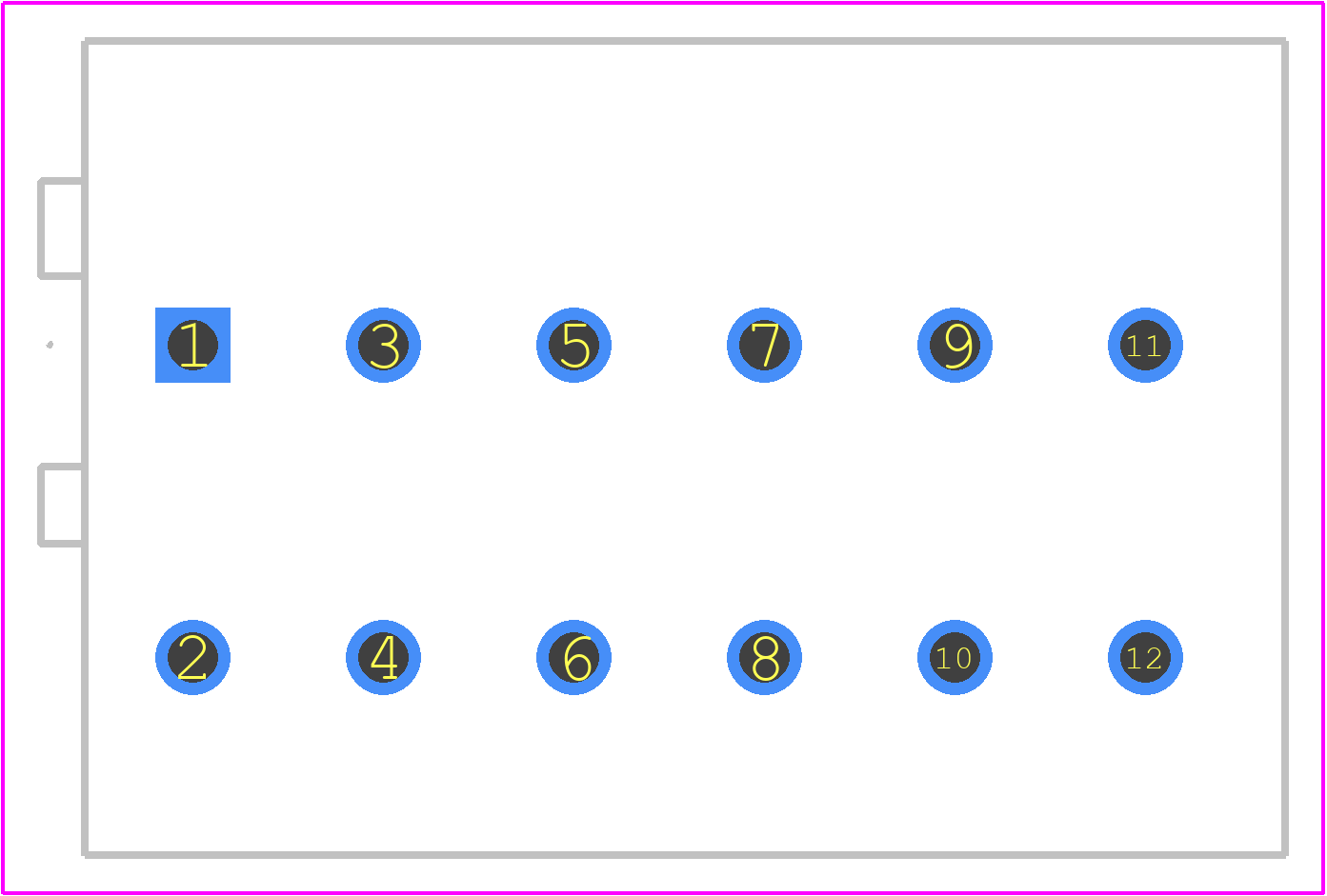

LPTA2,5/6-5,0 - Phoenix Contact PCB footprint - Other - Other - LPTA2,5/6-5,0-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for LPTA2,5/6-5,0
Part Number LPTA2,5/6-5,0
Manufacturer Phoenix Contact
Pin Count 12
Part Category Connector
Package Category Other
Footprint Name Other - LPTA2,5/6-5,0-1
Released Date Dec 12, 2024
Last Modified Date Dec 12, 2024 9:24 AM UTC
Pinout / Pin List Click Here (Member Only)

LPTA2,5/6-5,0 Details

Manufacturer Part Number:
LPTA2,5/6-5,0
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.90.40.00
Manufacturer:
Phoenix Contact
Terminal and Terminal Block Type:
BARRIER STRIP TERMINAL BLOCK

Trust Checks

Community Provided

System Verified

Community Approved

LPTA2,5/6-5,0 Overview

Use the download button to access the LPTA2,5/6-5,0 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like LPTA2, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
