LPY450AL - STMicroelectronics

Description: MEMS motion sensor

Download LPY450AL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

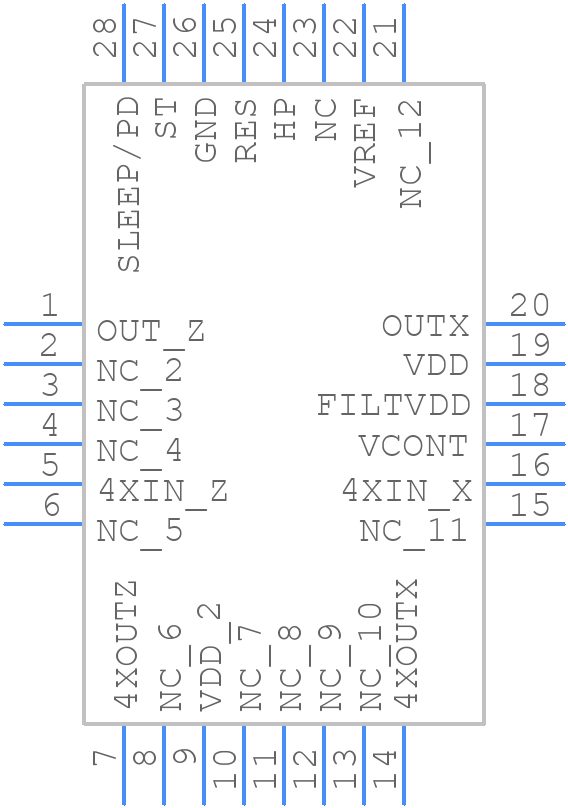

Symbol
LPY450AL - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
LPY450AL - STMicroelectronics PCB footprint - Other - Other - LGA28R50P8X6_500X400X100
click to zoom
3D Models
LPY450AL - STMicroelectronics - 3D model - Other - LGA28R50P8X6_500X400X100
click to zoom

LPY450AL Details

  • Manufacturer Part Number:

    LPY450AL

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    LGA

  • Package Description:

    4 X 5 MM, 1 MM HEIGHT, GREEN, PLASTIC, LGA-28

  • Pin Count:

    28

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PBCC-N28

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC28,.16X.2,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Gold (Ni/Au) - electrolytic

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

LPY450AL Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN3991, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • The LPY450AL requires calibration to compensate for manufacturing tolerances and environmental factors. STMicroelectronics provides a calibration procedure in the application note AN3991, which involves applying known accelerations and rotations to the device and adjusting the internal registers accordingly.
  • While the datasheet specifies an operating temperature range of -40°C to 85°C, STMicroelectronics recommends limiting the operating temperature to -20°C to 70°C for optimal performance and reliability.
  • Yes, the LPY450AL is designed to operate in high-vibration environments, but it's essential to follow proper mounting and mechanical design guidelines to ensure the device's accuracy and reliability. STMicroelectronics provides guidelines for vibration testing and mechanical design in the application note AN3991.
  • The LPY450AL communicates through a standard I2C or SPI interface. STMicroelectronics provides example code and interface guidelines for popular microcontrollers in the application note AN3991 and on their website.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

LPY450AL Overview

Use the download button to access the LPY450AL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LPY45, or try a keyword search, such as Other Signal Circuits

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
