LQH32CN2R2M33L - Murata Electronics

Description: LQH32CN_33 Series Inductor 2.2μH ±20% 1210 (3225)

Download LQH32CN2R2M33L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LQH32CN2R2M33L - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

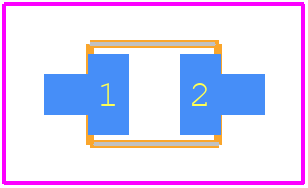

LQH32CN2R2M33L - Murata Electronics PCB footprint - Other - Other - 1210 (3225) L=3.2±0.3mm W=2.5±0.2mm T=2.0±0.2mm
click to zoom
3D Models
LQH32CN2R2M33L - Murata Electronics - 3D model - Other - 1210 (3225) L=3.2±0.3mm W=2.5±0.2mm T=2.0±0.2mm
click to zoom

LQH32CN2R2M33L Details

  • Manufacturer Part Number:

    LQH32CN2R2M33L

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Case/Size Code:

    1210

  • Construction:

    Unshielded

  • Core Material:

    FERRITE

  • DC Resistance:

    0.1261 Ω

  • Inductance-Nom (L):

    2.2 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e3

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Package Height:

    2 mm

  • Package Length:

    3.2 mm

  • Package Style:

    SMT

  • Package Width:

    2.5 mm

  • Packing Method:

    TR, EMBOSSED, 7 INCH

  • Rated Current-Max:

    0.79 A

  • Self Resonance Frequency:

    64 MHz

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    NO

  • Surface Mount:

    Reflow soldering,

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    WRAPAROUND

  • Test Frequency:

    1 MHz

  • Tolerance:

    20%

LQH32CN2R2M33L Frequently Asked Questions (FAQs)

  • The recommended land pattern for the LQH32CN2R2M33L can be found in the Murata Land Pattern document, which provides guidelines for PCB layout and footprint design.
  • The LQH32CN2R2M33L has a maximum operating temperature of 125°C. Ensure proper thermal management by providing adequate airflow, using thermal vias, and keeping the component away from heat sources.
  • The SRF of the LQH32CN2R2M33L is not explicitly stated in the datasheet, but it can be estimated using the inductor's inductance and capacitance values. For accurate results, consult with Murata's application engineers or perform your own measurements.
  • The LQH32CN2R2M33L is suitable for high-frequency applications up to several hundred MHz. However, be aware of the inductor's impedance characteristics and potential resonance issues at high frequencies.
  • Follow proper storage and handling procedures, avoid excessive mechanical stress, and ensure the inductor is operated within its specified ratings. Regularly inspect the component for signs of wear or damage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LQH32CN2R2M33L Overview

Use the download button to access the LQH32CN2R2M33L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LQH32, or try a keyword search, such as Fixed Inductors

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
