LQH43PZ3R3M26L - Murata Electronics

Description: LQH43PZ_26 Series Inductor 3.3μH ±20% 1812 (4532)

Download LQH43PZ3R3M26L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LQH43PZ3R3M26L - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

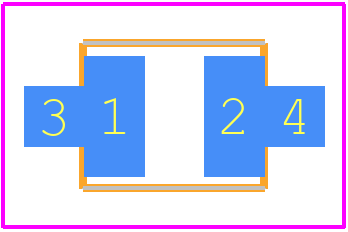

LQH43PZ3R3M26L - Murata Electronics PCB footprint - Other - Other - 1812 (4532) L=4.5±0.3mm W=3.2±0.2mm T=2.6±0.2mm
click to zoom
3D Models
LQH43PZ3R3M26L - Murata Electronics - 3D model - Other - 1812 (4532) L=4.5±0.3mm W=3.2±0.2mm T=2.6±0.2mm
click to zoom

LQH43PZ3R3M26L Details

  • Manufacturer Part Number:

    LQH43PZ3R3M26L

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Case/Size Code:

    1812

  • Core Material:

    FERRITE

  • DC Resistance:

    0.0624 Ω

  • Inductance-Nom (L):

    3.3 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Package Height:

    2.6 mm

  • Package Length:

    4.5 mm

  • Package Style:

    SMT

  • Package Width:

    3.2 mm

  • Packing Method:

    TR, EMBOSSED, 7 INCH

  • Rated Current-Max:

    2.1 A

  • Reference Standard:

    AEC-Q200

  • Self Resonance Frequency:

    40 MHz

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    YES

  • Surface Mount:

    Reflow soldering

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    WRAPAROUND

  • Test Frequency:

    1 MHz

  • Tolerance:

    20%

LQH43PZ3R3M26L Frequently Asked Questions (FAQs)

  • The recommended land pattern for LQH43PZ3R3M26L is a rectangular pad with a size of 2.5mm x 1.6mm, with a non-solder mask defined (NSMD) pad shape. The pad should be centered on the component and have a solder mask opening of 2.2mm x 1.3mm.
  • To minimize the risk of damage, it's recommended to follow the soldering temperature profile specified in the Murata application note (SC-110). The recommended peak temperature is 260°C, with a dwell time of 10-30 seconds. Avoid exceeding 280°C, as this can cause damage to the inductor.
  • The maximum allowable DC current for LQH43PZ3R3M26L is 1.3A. Exceeding this current may cause the inductor to overheat, leading to reduced performance or even failure.
  • The LQH43PZ3R3M26L is designed for high-frequency applications up to 1GHz. However, it's essential to consider the inductor's self-resonant frequency (SRF) and ensure that the operating frequency is below the SRF to avoid unwanted resonances and losses.
  • Yes, it's recommended to store the LQH43PZ3R3M26L in a dry, cool place, away from direct sunlight and moisture. Avoid bending, flexing, or applying excessive mechanical stress to the component, as this can cause damage or affect its performance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LQH43PZ3R3M26L Overview

Use the download button to access the LQH43PZ3R3M26L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LQH43, or try a keyword search, such as Fixed Inductors

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
