LQH5BPN2R2N38L - Murata Electronics

Description: LQH5BPN_38 Series Inductor 2.2μH ±30% 2020 (5050)

Download LQH5BPN2R2N38L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LQH5BPN2R2N38L - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

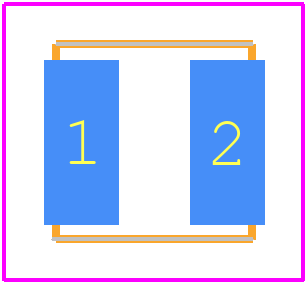

LQH5BPN2R2N38L - Murata Electronics PCB footprint - Other - Other - 2020 (5050) T=4.0mm max.
click to zoom
3D Models
LQH5BPN2R2N38L - Murata Electronics - 3D model - Other - 2020 (5050) T=4.0mm max.
click to zoom

LQH5BPN2R2N38L Details

  • Manufacturer Part Number:

    LQH5BPN2R2N38L

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Case/Size Code:

    2020

  • Core Material:

    FERRITE

  • DC Resistance:

    0.0192 Ω

  • Inductance-Nom (L):

    2.2 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Package Height:

    4 mm

  • Package Length:

    4.9 mm

  • Package Style:

    SMT

  • Package Width:

    4.9 mm

  • Packing Method:

    TR, EMBOSSED, 7 INCH

  • Rated Current-Max:

    4.3 A

  • Self Resonance Frequency:

    45 MHz

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    YES

  • Surface Mount:

    Reflow soldering

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    ONE SURFACE

  • Test Frequency:

    0.1 MHz

  • Tolerance:

    30%

LQH5BPN2R2N38L Frequently Asked Questions (FAQs)

  • The recommended land pattern for the LQH5BPN2R2N38L can be found in the Murata datasheet or in the IPC-7351 standard. It is essential to follow the recommended land pattern to ensure proper soldering and to prevent thermal and mechanical stress.
  • The LQH5BPN2R2N38L has a maximum operating temperature of 125°C. Ensure that the inductor is not exposed to temperatures above this rating. Also, consider the thermal resistance of the inductor and the PCB to prevent overheating.
  • The self-resonant frequency of the LQH5BPN2R2N38L is not explicitly stated in the datasheet. However, it can be estimated using the inductor's inductance and capacitance values. Typically, it is around 100-200 MHz for this inductor.
  • The LQH5BPN2R2N38L is suitable for high-frequency applications up to several hundred MHz. However, the inductor's performance may degrade at very high frequencies due to its internal capacitance and resistance. Ensure that the inductor's characteristics meet your application's requirements.
  • To ensure the reliability and longevity of the LQH5BPN2R2N38L, follow proper storage and handling procedures, avoid excessive mechanical stress, and operate the inductor within its specified ratings. Also, consider the inductor's moisture sensitivity level (MSL) and follow the recommended soldering and rework procedures.
