LQH66SN1R5M03L - Murata Electronics

Description: Murata LQH66S Series Shielded Wire-wound SMD Inductor with a Ferrite Core, 1.5 μH ±20% 3800mA Idc

Download LQH66SN1R5M03L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LQH66SN1R5M03L - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

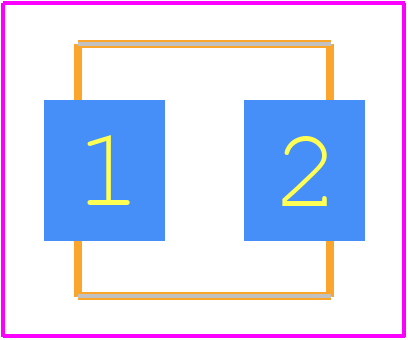

LQH66SN1R5M03L - Murata Electronics PCB footprint - Other - Other - 2525 (6363) T=4.7±0.3mm
click to zoom
3D Models
LQH66SN1R5M03L - Murata Electronics - 3D model - Other - 2525 (6363) T=4.7±0.3mm
click to zoom

LQH66SN1R5M03L Details

  • Manufacturer Part Number:

    LQH66SN1R5M03L

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Case/Size Code:

    2525

  • Construction:

    Magnetically Shielded

  • Core Material:

    FERRITE

  • DC Resistance:

    0.0224 Ω

  • Inductance-Nom (L):

    1.5 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e2

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Package Height:

    4.7 mm

  • Package Length:

    6.3 mm

  • Package Style:

    SMT

  • Package Width:

    6.3 mm

  • Packing Method:

    TR, EMBOSSED, 7 INCH

  • Rated Current-Max:

    3.8 A

  • Self Resonance Frequency:

    110 MHz

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    YES

  • Special Feature:

    DCR MEASURED AT 40% TOLERANCE

  • Surface Mount:

    Reflow soldering

  • Terminal Finish:

    Tin/Copper (Sn/Cu)

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    WRAPAROUND

  • Test Frequency:

    1 MHz

  • Tolerance:

    20%

LQH66SN1R5M03L Frequently Asked Questions (FAQs)

  • The recommended land pattern for the LQH66SN1R5M03L is a rectangular pad with a size of 2.5mm x 1.6mm, with a non-solder mask defined (NSMD) pad shape.
  • The LQH66SN1R5M03L's inductance value can vary with temperature. To minimize the impact of temperature on the inductor's performance, it's recommended to use a temperature-compensated design or to specify a specific temperature range for the application.
  • The maximum current rating for the LQH66SN1R5M03L is 1.3A, but this value can vary depending on the operating frequency and temperature. It's recommended to derate the current rating based on the specific application requirements.
  • To ensure proper soldering, use a soldering iron with a temperature of 350°C or less, and apply a soldering flux to the pads. Avoid applying excessive heat or pressure, which can damage the inductor.
  • The LQH66SN1R5M03L's ESR is approximately 0.15 ohms, but this value can vary depending on the operating frequency and temperature.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LQH66SN1R5M03L Overview

Use the download button to access the LQH66SN1R5M03L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LQH66, or try a keyword search, such as Fixed Inductors

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
