LS0502SCD33S - LITTELFUSE

Description: Single Cell Super Capacitor Protection IC for Backup Power Applications

Download LS0502SCD33S Model

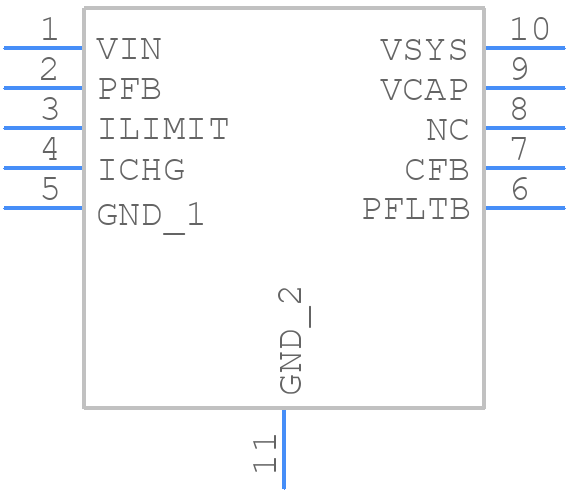

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LS0502SCD33S - LITTELFUSE PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN3x3_10L
click to zoom
3D Models
LS0502SCD33S - LITTELFUSE  - 3D model - Small Outline No-lead - DFN3x3_10L
click to zoom

LS0502SCD33S Details

  • Manufacturer Part Number:

    LS0502SCD33S

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    7

  • Analog IC - Other Type:

    BATTERY BACKUP SUPERVISOR

LS0502SCD33S Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing the device on a thermal pad with a minimum size of 50mm x 50mm, and ensuring good thermal conductivity between the pad and the surrounding copper area. Additionally, it's recommended to use a minimum of 2oz copper thickness and to avoid placing any thermal vias under the device.
  • To ensure reliable soldering of the LS0502SCD33S, it's recommended to follow the recommended soldering profile, which includes a peak temperature of 260°C and a dwell time of 10-30 seconds. Additionally, it's recommended to use a solder with a melting point of 217°C or higher, and to avoid applying excessive force or vibration during the soldering process.
  • The maximum allowed voltage derating for the LS0502SCD33S is 80% of the rated voltage, which is 33V. This means that the device should not be operated at a voltage higher than 26.4V to ensure reliable operation and to prevent damage to the device.
  • To handle ESD protection for the LS0502SCD33S, it's recommended to follow proper ESD handling procedures, such as using an ESD wrist strap or mat, and ensuring that all equipment and tools are properly grounded. Additionally, it's recommended to use ESD-sensitive devices and materials, and to avoid touching the device's pins or leads during handling.
  • The recommended storage condition for the LS0502SCD33S is in a dry, cool place with a temperature range of -40°C to 30°C and a relative humidity of 60% or less. It's also recommended to store the devices in their original packaging or in a shielded bag to prevent damage from ESD or moisture.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LS0502SCD33S Overview

Use the download button to access the LS0502SCD33S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LS050, or try a keyword search, such as Power Management Circuits
