LS0565SRWK - Multicomp Pro

Description: DISPLAY, SEVEN SEGMENT, 0.56 INCH, RED

Download LS0565SRWK Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

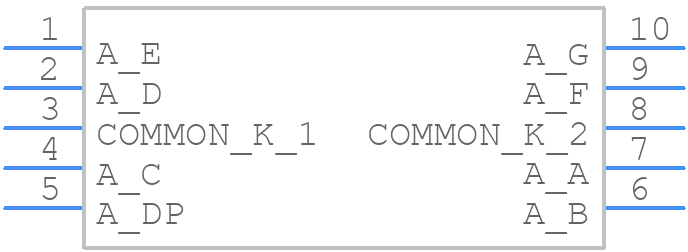

LS0565SRWK - Multicomp Pro - PCB symbol
click to zoom
PCB Footprints
LS0565SRWK - Multicomp Pro PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - LS0565SRWK
click to zoom

LS0565SRWK Details

  • Manufacturer Part Number:

    LS0565SRWK

  • Part Life Cycle Code:

    Obsolete

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    SPC Multicomp

  • YTEOL:

    0

  • Color:

    SUPER RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    14.2 mm

  • Forward Voltage-Max:

    2.5 V

  • Luminous Intensity-Min:

    2.1 cd

  • Luminous Intensity-Nom:

    4.2 mcd

  • Number of Characters:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    660 nm

LS0565SRWK Frequently Asked Questions (FAQs)

  • The recommended storage temperature for LS0565SRWK is -40°C to 100°C.
  • Yes, LS0565SRWK is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's standards for reducing hazardous substances in electronic components.
  • The operating temperature range for LS0565SRWK is -40°C to 85°C.
  • Yes, LS0565SRWK is designed to withstand high-vibration environments, making it suitable for use in applications such as industrial control systems, automotive systems, and more.
