- Part Number LS1017AXE7NQA
- Manufacturer NXP
- Pin Count 448
- Part Category Integrated Circuit
- Package Category BGA
- Footprint Name BGA - FBGA-448
- Released Date Apr 13, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
LS1017AXE7NQA Details
-
Manufacturer Part Number:
LS1017AXE7NQA
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
FCBGA-448
-
ECCN Code:
5A002.A.1
-
HTS Code:
8542.31.00.01
-
Manufacturer:
NXP Semiconductors
-
YTEOL:
7
-
JESD-30 Code:
S-PBGA-B448
-
Length:
17 mm
-
Moisture Sensitivity Level:
3
LS1017AXE7NQA Frequently Asked Questions (FAQs)
-
NXP provides a recommended PCB layout guide for the LS1017AXE7NQA in their application note AN12213, which includes guidelines for thermal vias, heat sinks, and PCB material selection to ensure optimal thermal performance.
-
The LS1017AXE7NQA has various power-saving features, such as dynamic voltage and frequency scaling, clock gating, and power domains. Engineers can configure these features using the device's power management controller (PMC) and clock controller (CC) registers. NXP provides detailed information on power management in their LS1017A reference manual.
-
NXP provides a DDR memory interface guide for the LS1017AXE7NQA, which includes recommended settings for DDR frequency, voltage, and timing parameters. Engineers can also refer to the device's datasheet and reference manual for more information on DDR memory interface configuration.
-
The LS1017AXE7NQA has a secure boot mechanism that ensures the authenticity and integrity of the boot process. Engineers can implement secure boot using the device's boot ROM and secure boot firmware, which is provided by NXP. NXP also provides a secure boot guide and reference manual for the LS1017AXE7NQA.
-
The LS1017AXE7NQA has a maximum junction temperature (Tj) of 105°C. Engineers should ensure that the device's operating temperature is within the recommended range by using thermal design techniques such as heat sinks, thermal interfaces, and airflow management. NXP provides thermal design guidelines and thermal models for the LS1017AXE7NQA in their datasheet and application notes.
Trust Checks
Community Provided
System Verified
Community Approved
LS1017AXE7NQA Overview

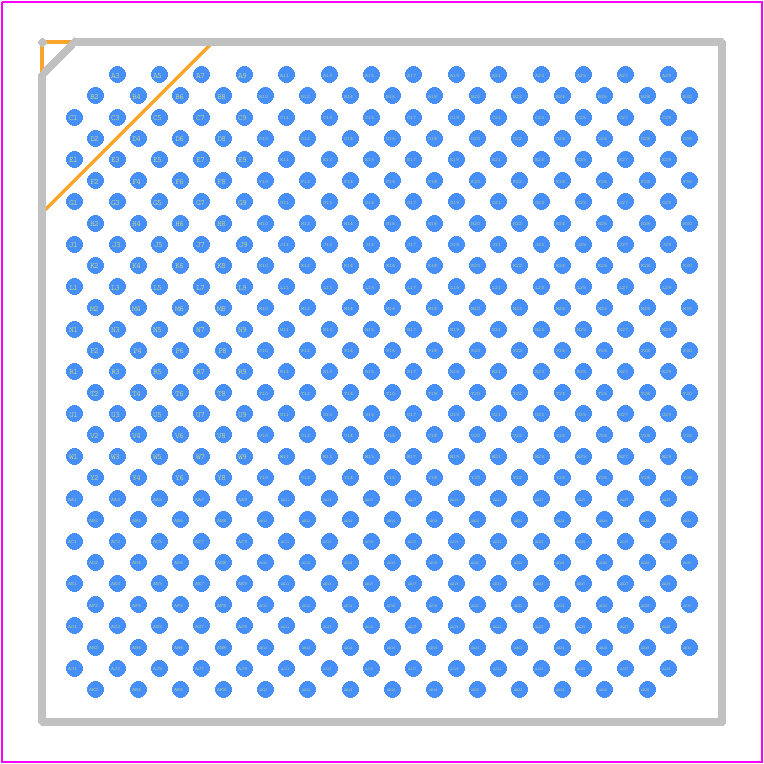

Use the download button to access the LS1017AXE7NQA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LS101,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
