LS1043AXE7KQB - NXP

Description: Layerscape 64-bit Arm Cortex-A53, Quad-core, 1.0GHz, -40 to 105C, Security enabled, 21x21 pkg

Download LS1043AXE7KQB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LS1043AXE7KQB - NXP - PCB symbol
click to zoom
PCB Footprints

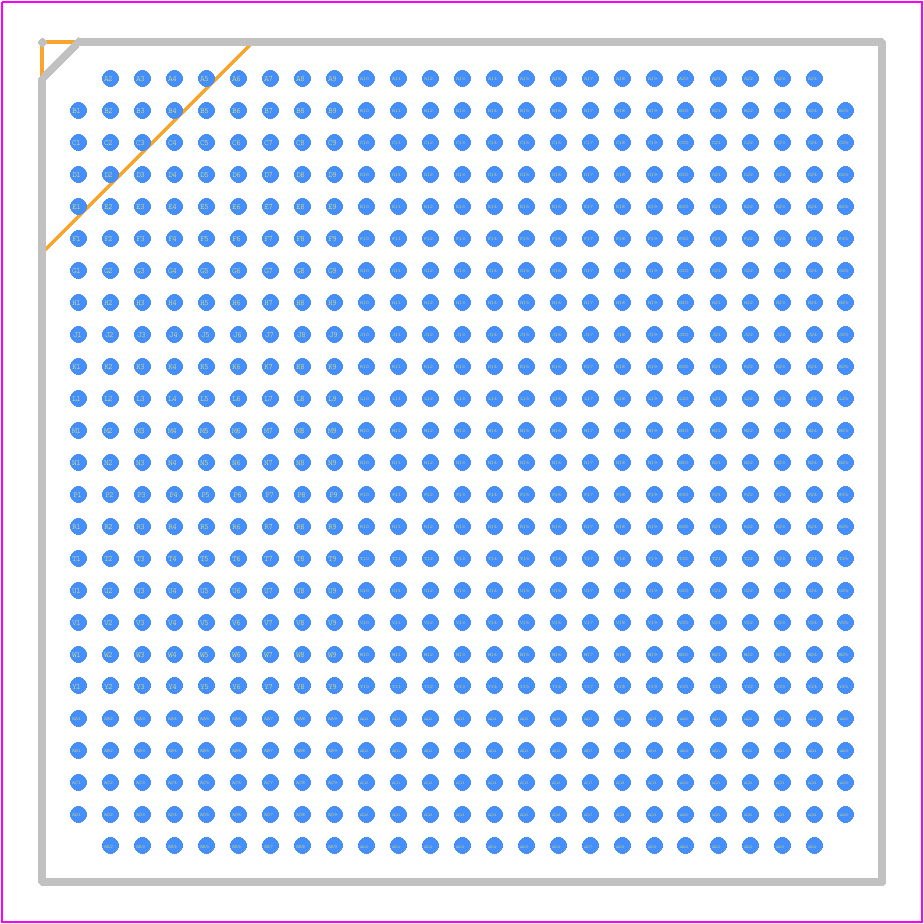

LS1043AXE7KQB - NXP PCB footprint - BGA - BGA - 21x21 mm (621 balls)
click to zoom
3D Models
LS1043AXE7KQB - NXP - 3D model - BGA - 21x21 mm (621 balls)
click to zoom

LS1043AXE7KQB Details

  • Manufacturer Part Number:

    LS1043AXE7KQB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    5A002.A.1

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    9

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    250

  • Time@Peak Reflow Temperature-Max (s):

    30

  • uPs/uCs/Peripheral ICs Type:

    SOC

LS1043AXE7KQB Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply power to the VDD_CORE, VDD_SOC, and VDD_SOC rails simultaneously, followed by the VDD_DDR rail. The power-up sequence should be controlled to ensure that the voltage on the VDD_CORE rail reaches its minimum specified value before the voltage on the VDD_DDR rail reaches its minimum specified value.
  • The boot mode of the LS1043AXE7KQB can be configured using the Boot Mode Pins (BOOT_MODE[2:0]). The boot mode pins are sampled during the power-on reset (POR) and determine the boot mode of the device. The boot mode can be configured to boot from various sources such as QSPI, NAND, SD/MMC, and eMMC.
  • The maximum operating frequency of the LS1043AXE7KQB is 1.5 GHz. However, the actual operating frequency may vary depending on the specific use case, thermal conditions, and power management settings.
  • Secure boot on the LS1043AXE7KQB can be implemented using the device's built-in security features such as the Secure Boot mechanism, and the Cryptographic Acceleration Unit (CAU). The secure boot process involves generating and storing secure boot keys, creating a secure boot image, and configuring the device to boot from the secure boot image.
  • The LS1043AXE7KQB can support up to 8 GB of DDR memory. The device has a 64-bit DDR interface that can be configured to support various DDR memory densities and speeds.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LS1043AXE7KQB Overview

Use the download button to access the LS1043AXE7KQB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LS104, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
