LS1043AXE7MQB - NXP

Description: Microprocessors - MPU Layerscape 64-bit Arm Cortex-A53, Quad-core, 1.2GHz, -40 to 105C, Security enabled, 21x21 pkg

Download LS1043AXE7MQB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LS1043AXE7MQB - NXP - PCB symbol
click to zoom
PCB Footprints

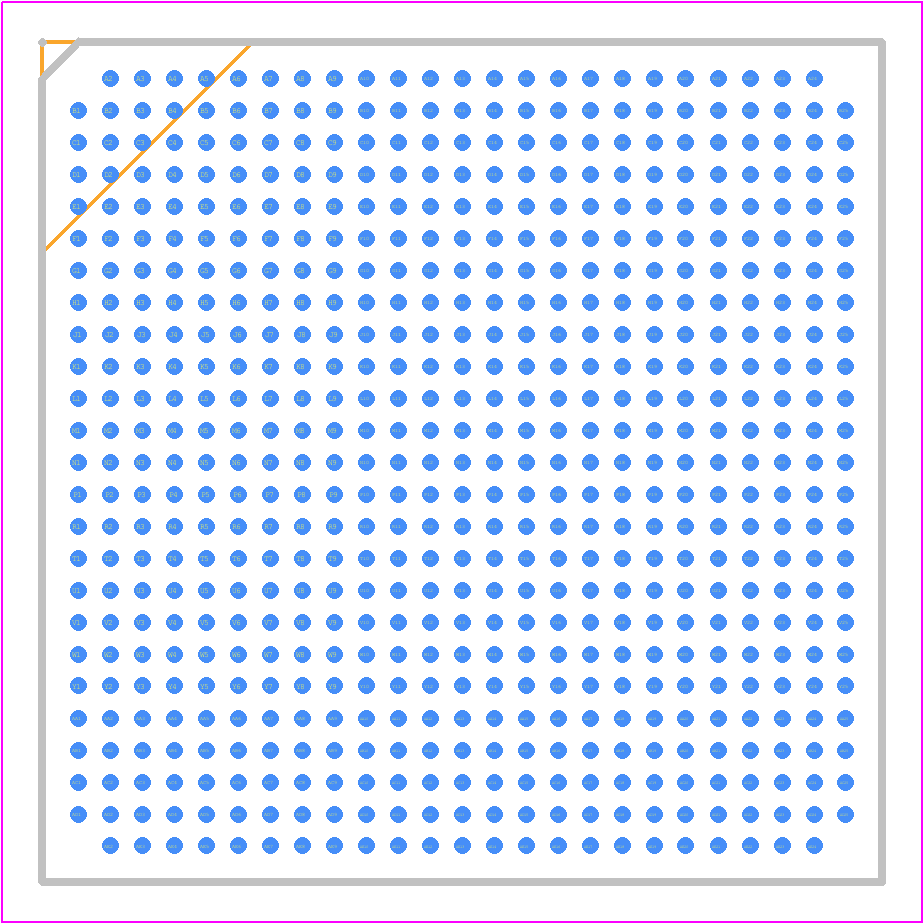

LS1043AXE7MQB - NXP PCB footprint - BGA - BGA - FC-PBGA 21x21 mm (621 balls)
click to zoom
3D Models
LS1043AXE7MQB - NXP - 3D model - BGA - FC-PBGA 21x21 mm (621 balls)
click to zoom

LS1043AXE7MQB Details

  • Manufacturer Part Number:

    LS1043AXE7MQB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    FBGA621

  • ECCN Code:

    5A002.A.1

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    9

  • JESD-30 Code:

    S-PBGA-B621

  • JESD-609 Code:

    e1

  • Length:

    21 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    621

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    250

  • Seated Height-Max:

    1.92 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    21 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

LS1043AXE7MQB Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the LS1043AXE7MQB is -40°C to 105°C.
  • The DDR memory interface on the LS1043AXE7MQB can be configured using the DDR controller registers. Refer to the LS1043AXE7MQB reference manual for detailed information on configuring the DDR memory interface.
  • The maximum frequency of the CPU on the LS1043AXE7MQB is 1.6 GHz.
  • The LS1043AXE7MQB has a TrustZone-enabled ARM Cortex-A72 core, which provides a secure environment for executing trusted code. The chip also has a Secure Boot mechanism, which ensures that only authorized firmware can be executed. Refer to the LS1043AXE7MQB security reference manual for detailed information on using the security features.
  • The power consumption of the LS1043AXE7MQB varies depending on the operating frequency, voltage, and usage scenario. Refer to the LS1043AXE7MQB datasheet for detailed power consumption information.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LS1043AXE7MQB Overview

Use the download button to access the LS1043AXE7MQB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LS104, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
