LS1043AXE7PQB - NXP

Description: Microprocessors - MPU QorIQ, 4xCPU 64-Bit ARM Arch, 1.4GHz, DDR3L/4, PCIe, 1/10GbE, HW Accel, SEC, -40 105C, 21x21 pkg

Download LS1043AXE7PQB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LS1043AXE7PQB - NXP - PCB symbol
click to zoom
PCB Footprints

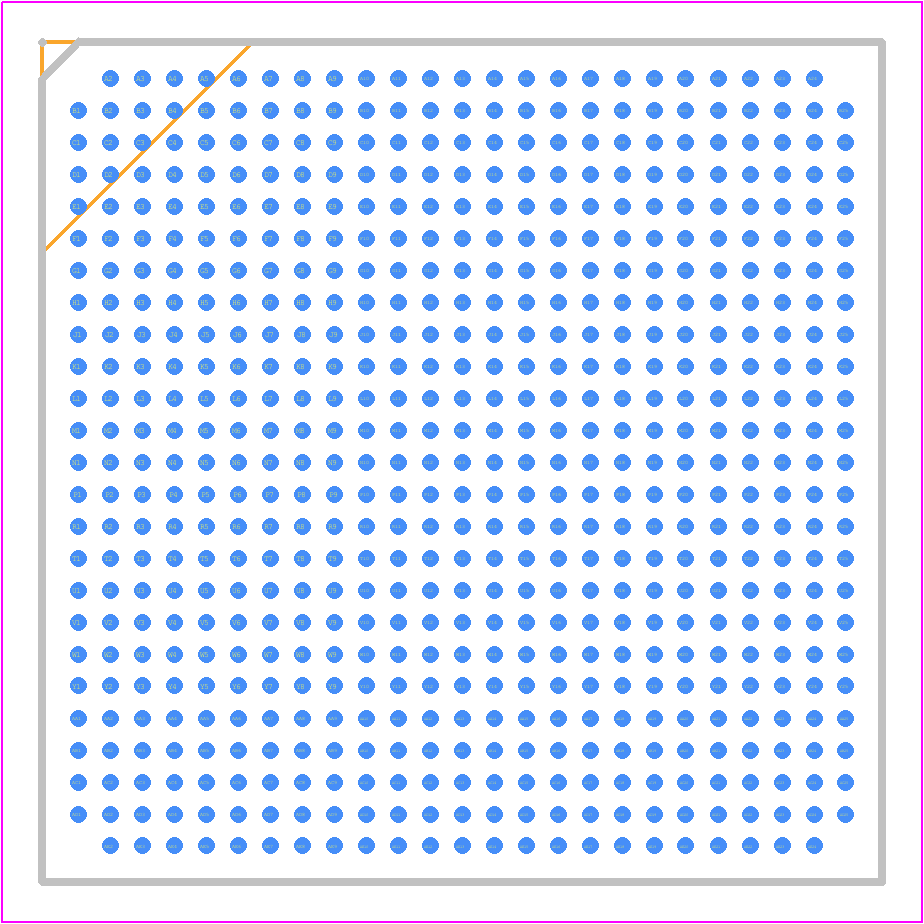

LS1043AXE7PQB - NXP PCB footprint - BGA - BGA - SOT1661-1-1
click to zoom
3D Models
LS1043AXE7PQB - NXP - 3D model - BGA - SOT1661-1-1
click to zoom

LS1043AXE7PQB Details

  • Manufacturer Part Number:

    LS1043AXE7PQB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LCFC-621

  • ECCN Code:

    5A002.A.1

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    9

  • Additional Feature:

    ALSO OPERATES AT 1V SUPPLY NOM

  • JESD-30 Code:

    S-PBGA-B621

  • JESD-609 Code:

    e1

  • Length:

    21 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    621

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Peak Reflow Temperature (Cel):

    250

  • Seated Height-Max:

    2.07 mm

  • Supply Voltage-Max:

    0.93 V

  • Supply Voltage-Min:

    0.87 V

  • Supply Voltage-Nom:

    0.9 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    21 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

LS1043AXE7PQB Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the LS1043AXE7PQB is -40°C to 105°C (industrial temperature range). However, it's recommended to operate within -20°C to 85°C for optimal performance and reliability.
  • The DDR memory interface on the LS1043AXE7PQB can be configured using the DDR Controller (DDRC) registers. You'll need to set the memory timing parameters, clock frequency, and other settings according to your specific DDR memory module. Refer to the LS1043A Reference Manual and the DDR memory module datasheet for more information.
  • The LS1043AXE7PQB is designed to operate at a core voltage of 1.2V. While it's possible to operate at a slightly different voltage, it's not recommended as it may affect the device's performance, power consumption, and reliability. If you need to operate at a different voltage, consult with NXP Semiconductors or a qualified engineer to ensure the device's specifications are met.
  • The LS1043AXE7PQB supports secure boot through its Boot ROM and Trust Architecture. You'll need to generate a secure boot image using NXP's CodeWarrior or other development tools, and then configure the Boot ROM to authenticate the image. Refer to the LS1043A Reference Manual and NXP's secure boot documentation for more information.
  • The LS1043AXE7PQB has a PCIe interface that supports up to 5 GT/s (gigatransfers per second) per lane, with a maximum of 4 lanes. This translates to a maximum bandwidth of 2 GB/s per lane, or 8 GB/s in x4 mode.
