The recommended PCB layout for optimal thermal performance involves placing the device on a thermal pad with a minimum size of 20mm x 20mm, and ensuring that the thermal pad is connected to a solid ground plane to dissipate heat efficiently.
To ensure reliable operation in high-temperature environments, it is recommended to derate the device's current rating according to the temperature derating curve provided in the datasheet, and to ensure good airflow around the device to prevent thermal buildup.
The recommended soldering profile for the LS2405IDD23 involves a peak temperature of 260°C, with a dwell time of 10-30 seconds above 220°C, and a ramp-up rate of 3°C/second maximum.
Yes, the LS2405IDD23 is designed to withstand high-vibration environments, but it is recommended to follow proper mounting and soldering techniques to ensure reliable operation. Additionally, it is recommended to perform vibration testing to ensure the device meets the specific requirements of the application.
The recommended storage and handling procedure for the LS2405IDD23 involves storing the devices in their original packaging, away from direct sunlight and moisture, and handling them with anti-static precautions to prevent ESD damage.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LS2405IDD23 Overview

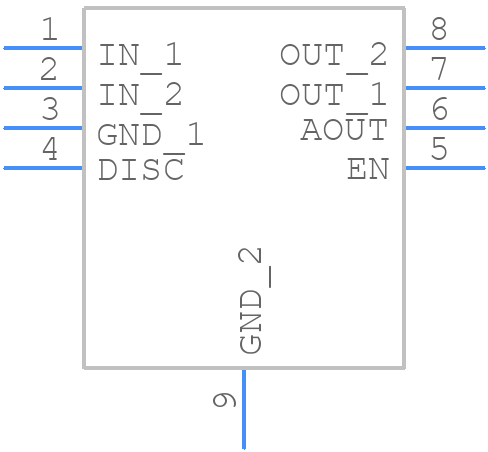

Use the download button to access the LS2405IDD23 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LS240,
or try a keyword search, such as Power Management Circuits
