A good PCB layout for the LS2406ERQ23 should include a large copper pad for heat dissipation, with multiple vias to the ground plane to reduce thermal resistance. The device should be placed near a thermal pad or heat sink to maximize heat dissipation.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow. Additionally, consider derating the device's current rating at high temperatures to prevent overheating.
The recommended soldering conditions for the LS2406ERQ23 are a peak temperature of 260°C, with a soldering time of 10-15 seconds. It's essential to follow the recommended soldering profile to prevent damage to the device.
To handle ESD protection for the LS2406ERQ23, it's recommended to follow proper ESD handling procedures, such as using ESD-safe workstations, wearing ESD-protective clothing, and using ESD-protective packaging. Additionally, consider adding external ESD protection devices, such as TVS diodes, to the circuit.
The LS2406ERQ23's power rating has implications on the system design, including the need for adequate heat sinking, proper PCB layout, and derating the device's current rating at high temperatures. It's essential to consider the device's power rating when designing the system's power supply, thermal management, and overall reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LS2406ERQ23 Overview

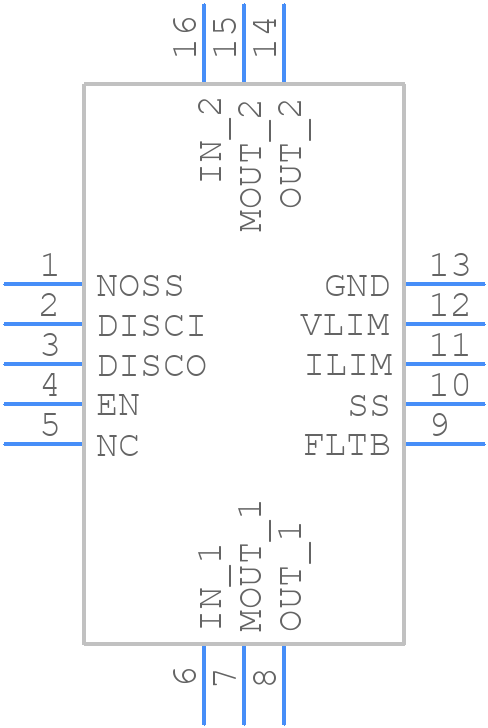

Use the download button to access the LS2406ERQ23 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LS240,
or try a keyword search, such as Power Management Circuits
