LSD100AUE-101A-01 - WENRUN

Description: Display: LED; 7-segment; 25.4mm; 1"; No.char: 1; red; 15mcd; cathode

Download LSD100AUE-101A-01 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this LSD100AUE-101A-01 model

Email notifications will be applied after download.

Send part feedback

Symbol

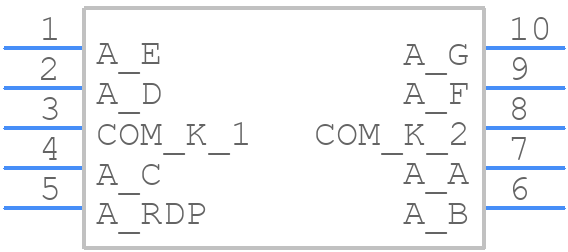

LSD100AUE-101A-01 - WENRUN - PCB symbol

PCB Footprints

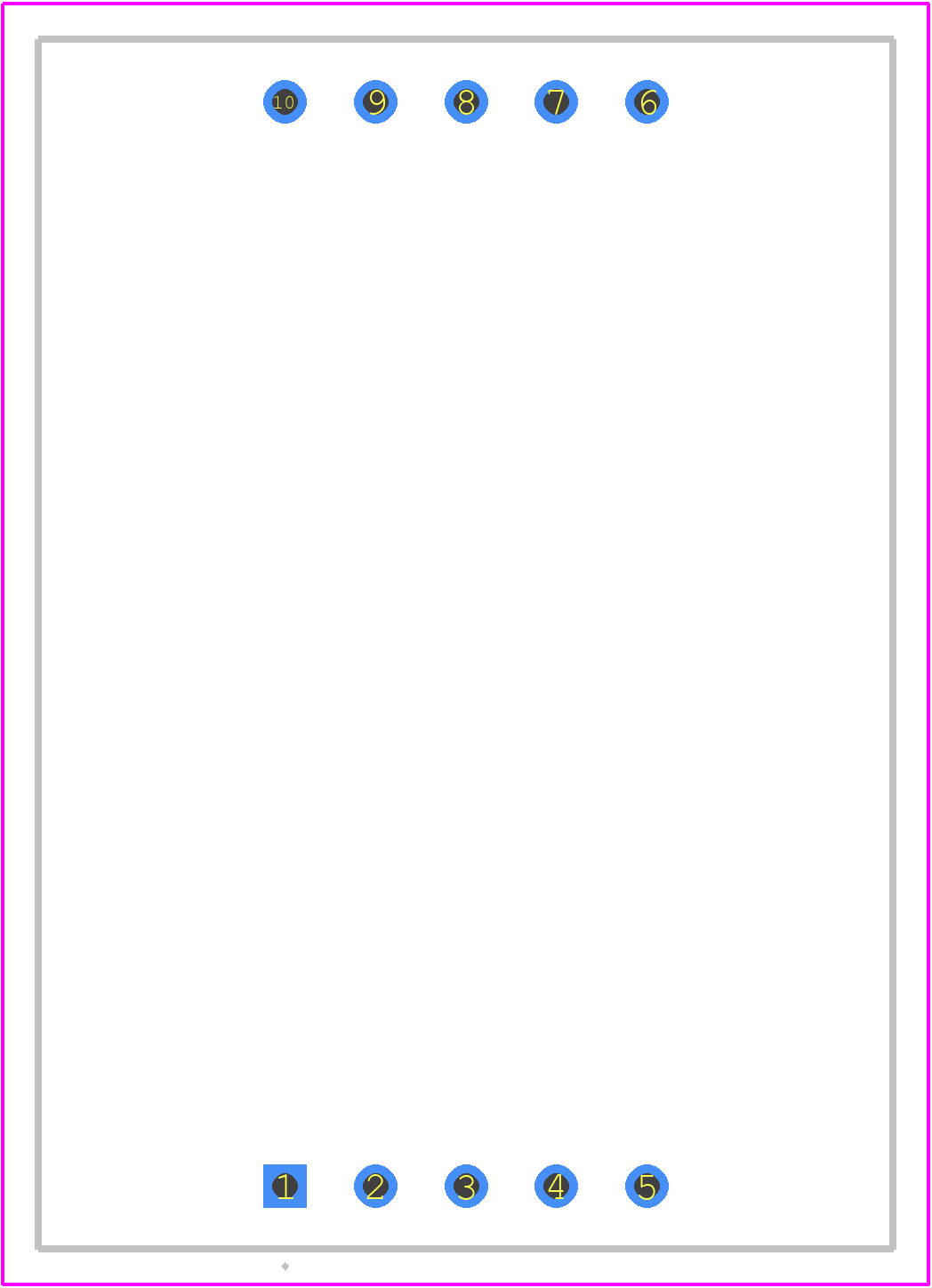

LSD100AUE-101A-01 - WENRUN PCB footprint - Other - Other - 34mm x 2 4mm

3D Models

LSD100AUE-101A-01 - WENRUN - 3D model - Other - 34mm x 2 4mm

Datasheet Download Datasheet
Stock & Prices Price & Stock for LSD100AUE-101A-01
Part Number LSD100AUE-101A-01
Manufacturer WENRUN
Pin Count 10
Part Category Display
Package Category Other
Footprint Name Other - 34mm x 2 4mm
Released Date Aug 31, 2024
Last Modified Date Aug 31, 2024 8:00 AM UTC
Pinout / Pin List Click Here (Member Only)

LSD100AUE-101A-01 Details

Manufacturer Part Number:
LSD100AUE-101A-01
Manufacturer:
Jiangsu Wenrun Optoelectronic Co Ltd
