LSD100BAG-101-02 - WENRUN

Description: Display: LED; 7-segment; 25.4mm; 1"; No.char: 1; green; 8mcd; anode,140 mW,80 mA -40~ +85 ℃

Download LSD100BAG-101-02 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this LSD100BAG-101-02 model

Email notifications will be applied after download.

Send part feedback

Symbol

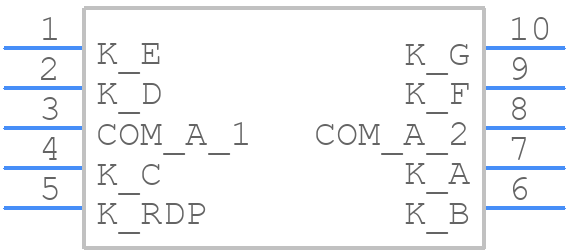

LSD100BAG-101-02 - WENRUN - PCB symbol

PCB Footprints

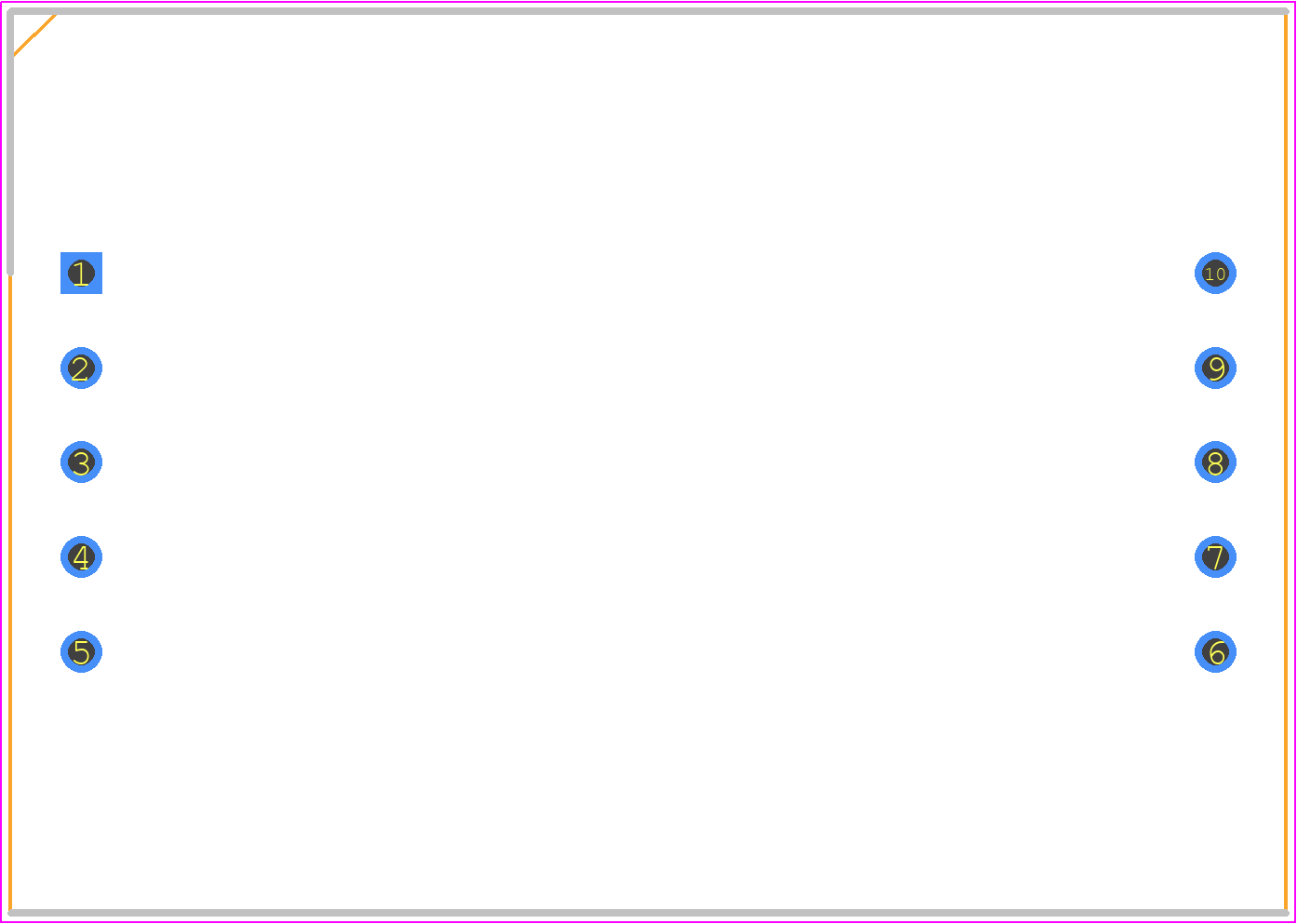

LSD100BAG-101-02 - WENRUN PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - DIP-10_2026

Datasheet Download Datasheet
Stock & Prices Price & Stock for LSD100BAG-101-02
Part Number LSD100BAG-101-02
Manufacturer WENRUN
Pin Count 10
Part Category Display
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - DIP-10_2026
Released Date Apr 17, 2026
Last Modified Date Apr 17, 2026 10:33 AM UTC
Pinout / Pin List Click Here (Member Only)

LSD100BAG-101-02 Details

Manufacturer Part Number:
LSD100BAG-101-02
Manufacturer:
Jiangsu Wenrun Optoelectronic Co Ltd

Trust Checks

Community Provided

System Verified

Community Approved

LSD100BAG-101-02 Overview

Use the download button to access the LSD100BAG-101-02 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like LSD10, or try a keyword search, such as LED Displays
