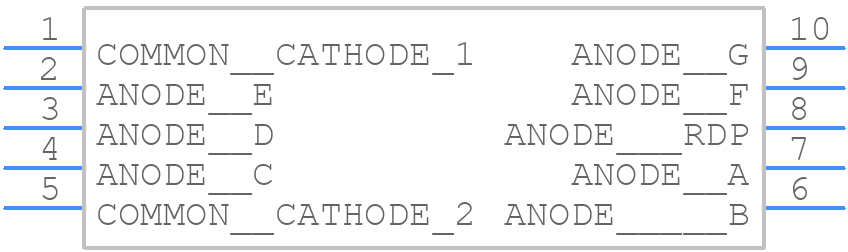

Symbol

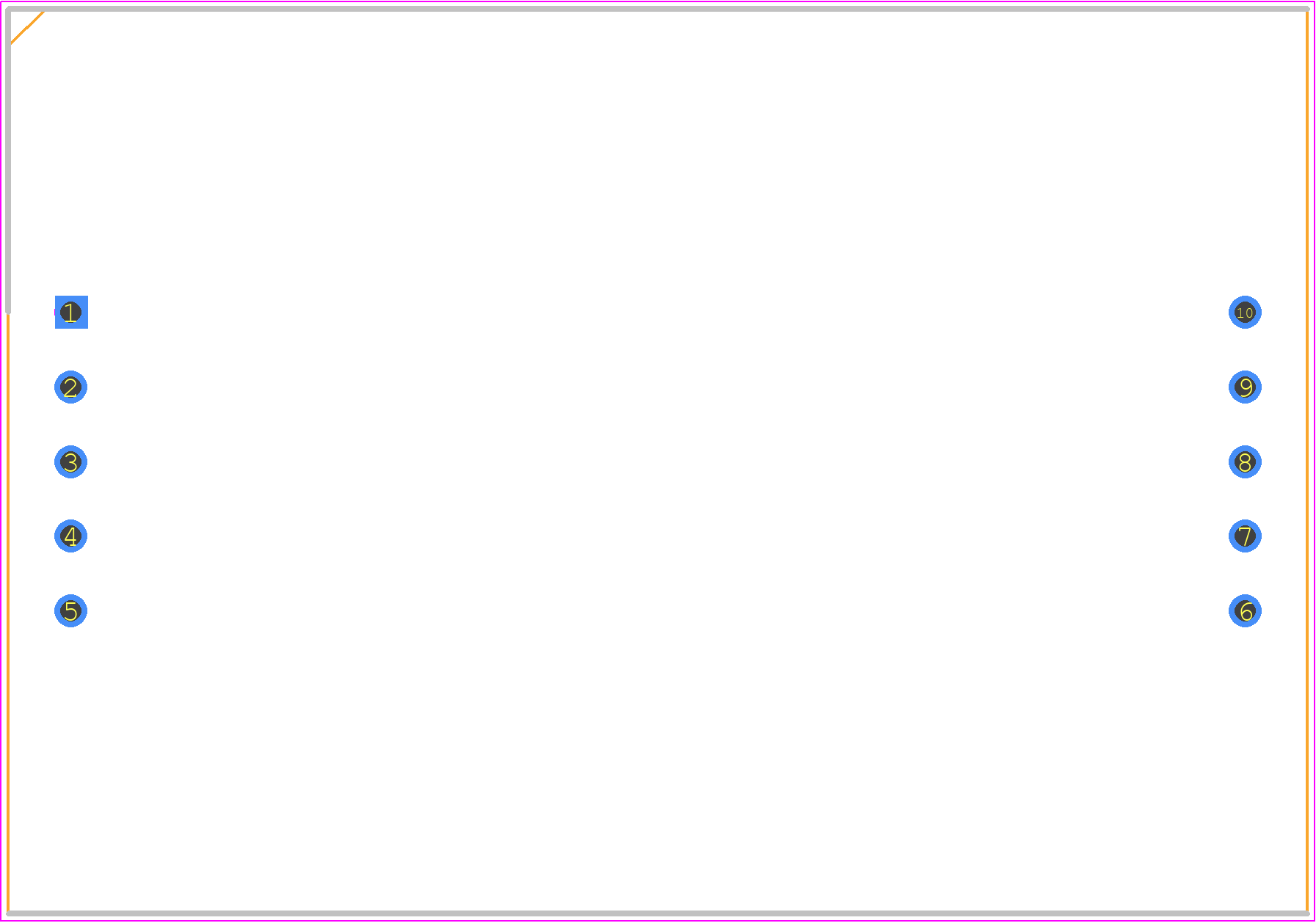

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for LSD150AAG-101
- Part Number LSD150AAG-101
- Manufacturer WENRUN
- Pin Count 10
- Part Category Display
- Package Category Dual-In-Line Sockets
- Footprint Name Dual-In-Line Sockets - LSD150AAG-101
- Released Date May 30, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
LSD150AAG-101 Details
-
Manufacturer Part Number:
LSD150AAG-101
-
Manufacturer:
Jiangsu Wenrun Optoelectronic Co Ltd
Trust Checks
Community Provided
System Verified
Community Approved
LSD150AAG-101 Overview
Use the download button to access the LSD150AAG-101 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like LSD15,
or try a keyword search, such as LED Displays
