LSD150AUE-101-01 - WENRUN

Description: Display: LED; 7-segment; 38.1mm; 1.5"; No.char: 1; red; 20mcd

Download LSD150AUE-101-01 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this LSD150AUE-101-01 model

Email notifications will be applied after download.

Send part feedback

Symbol

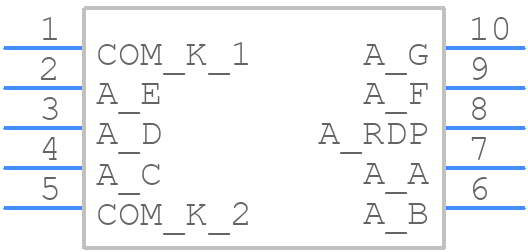

LSD150AUE-101-01 - WENRUN - PCB symbol

PCB Footprints

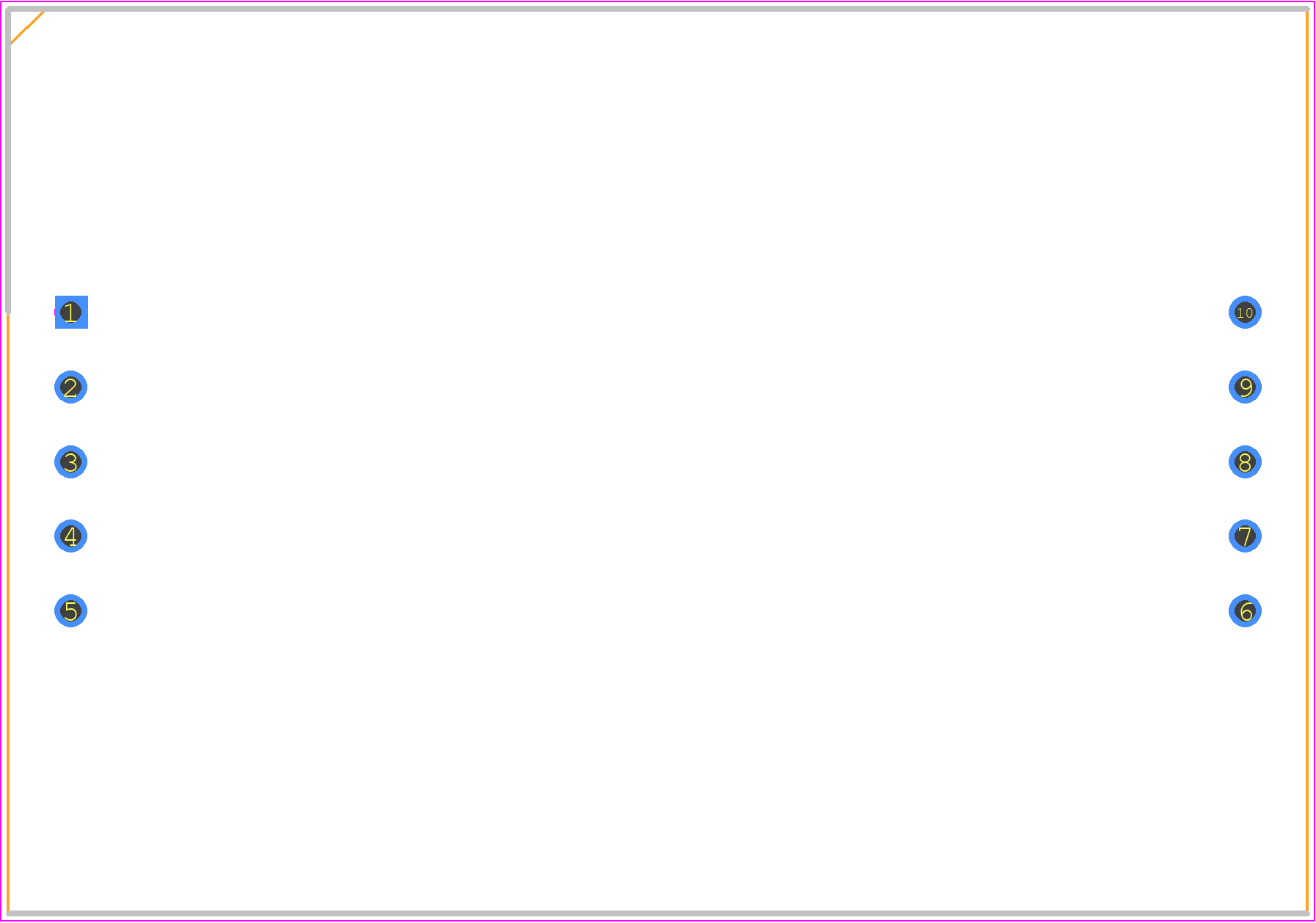

LSD150AUE-101-01 - WENRUN PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 10-Pin DIP

3D Models

LSD150AUE-101-01 - WENRUN - 3D model - Dual-In-Line Sockets - 10-Pin DIP

Datasheet Download Datasheet
Stock & Prices Price & Stock for LSD150AUE-101-01
Part Number LSD150AUE-101-01
Manufacturer WENRUN
Pin Count 10
Part Category Display
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - 10-Pin DIP
Released Date Mar 26, 2024
Last Modified Date Mar 27, 2024 5:18 AM UTC
Pinout / Pin List Click Here (Member Only)

LSD150AUE-101-01 Details

Manufacturer Part Number:
LSD150AUE-101-01
Manufacturer:
Jiangsu Wenrun Optoelectronic Co Ltd

Trust Checks

Community Provided

System Verified

Community Approved

LSD150AUE-101-01 Overview

Use the download button to access the LSD150AUE-101-01 schematic symbol, PCB footprint, and 3D model.
