LSD230AUE-101A-01 - WENRUN

Description: Display: LED; 7-segment; 58.42mm; 2.3"; No.char: 1; red; 28mcd

Download LSD230AUE-101A-01 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this LSD230AUE-101A-01 model

Email notifications will be applied after download.

Send part feedback

Symbol

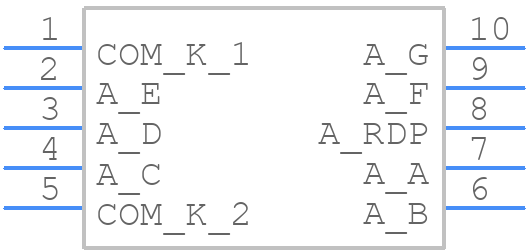

LSD230AUE-101A-01 - WENRUN - PCB symbol

PCB Footprints

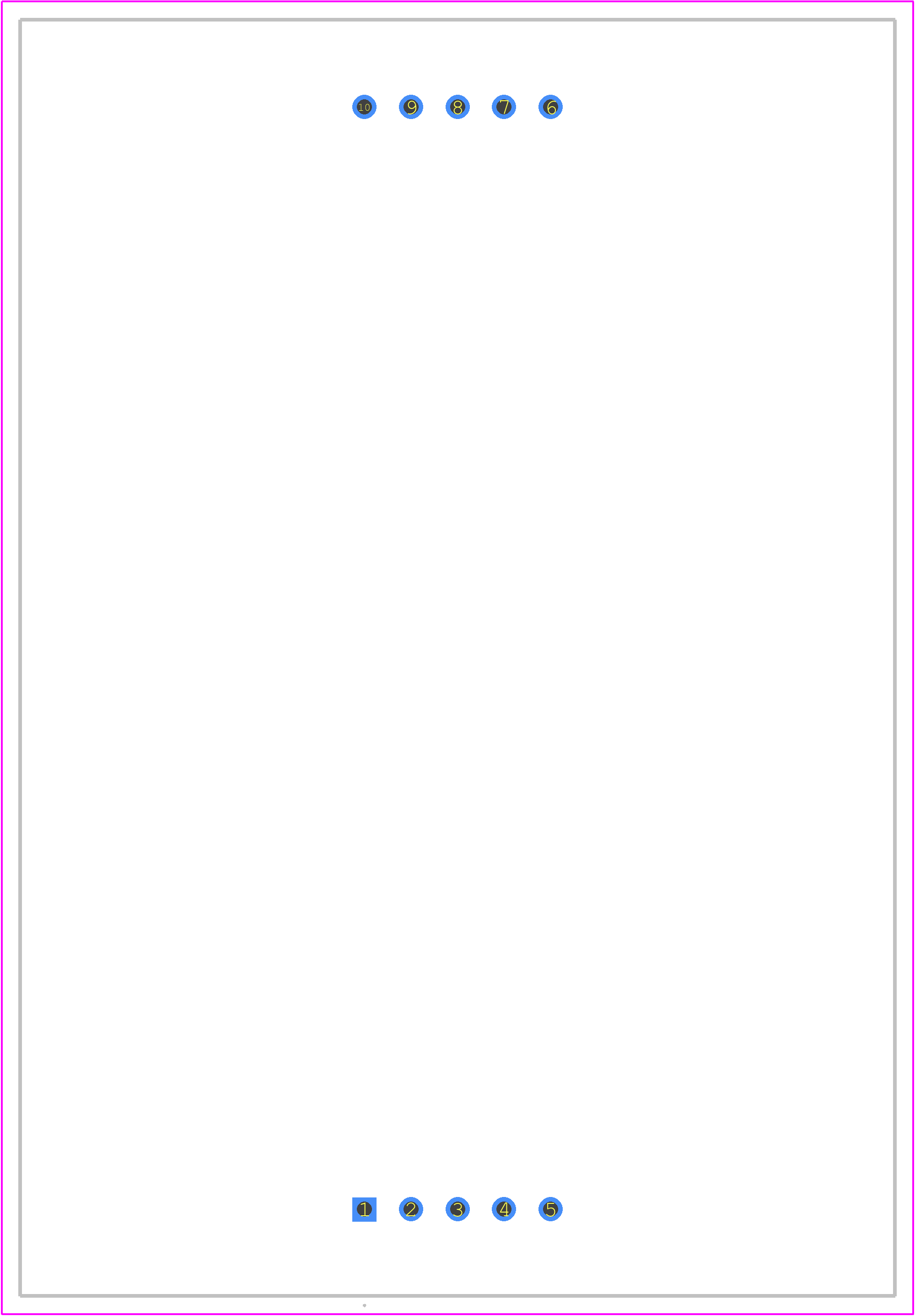

LSD230AUE-101A-01 - WENRUN PCB footprint - Other - Other - LSD230AUE-101A-01-6

3D Models

LSD230AUE-101A-01 - WENRUN - 3D model - Other - LSD230AUE-101A-01-6

Datasheet Download Datasheet
Stock & Prices Price & Stock for LSD230AUE-101A-01
Part Number LSD230AUE-101A-01
Manufacturer WENRUN
Pin Count 10
Part Category Display
Package Category Other
Footprint Name Other - LSD230AUE-101A-01-6
Released Date Nov 25, 2023
Last Modified Date Nov 25, 2023 3:31 AM UTC
Pinout / Pin List Click Here (Member Only)

LSD230AUE-101A-01 Details

Manufacturer Part Number:
LSD230AUE-101A-01
Manufacturer:
Jiangsu Wenrun Optoelectronic Co Ltd

Trust Checks

Community Provided

System Verified

Community Approved

LSD230AUE-101A-01 Overview

Use the download button to access the LSD230AUE-101A-01 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like LSD23, or try a keyword search, such as LED Displays
