A good PCB layout for LSF0108QPWRQ1 involves keeping the input and output traces short and wide, using a solid ground plane, and placing decoupling capacitors close to the device. TI provides a recommended PCB layout in the datasheet and application notes.
To ensure signal integrity, use controlled impedance traces, minimize trace length and stubs, and use termination resistors if necessary. Also, keep the signal traces away from noise sources and use shielding if possible.
The maximum operating temperature range for LSF0108QPWRQ1 is -40°C to 125°C. However, the device can be operated at a reduced temperature range for specific applications, but this may affect its performance and reliability.
Yes, LSF0108QPWRQ1 is suitable for high-reliability applications. It is built with a robust design and has undergone rigorous testing to ensure its reliability. However, it's essential to follow proper design and manufacturing guidelines to ensure the device operates within its specifications.
To troubleshoot issues with LSF0108QPWRQ1, start by checking the power supply voltage, signal integrity, and PCB layout. Use oscilloscopes and logic analyzers to debug the issue. Consult the datasheet, application notes, and TI's support resources for guidance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LSF0108QPWRQ1 Overview

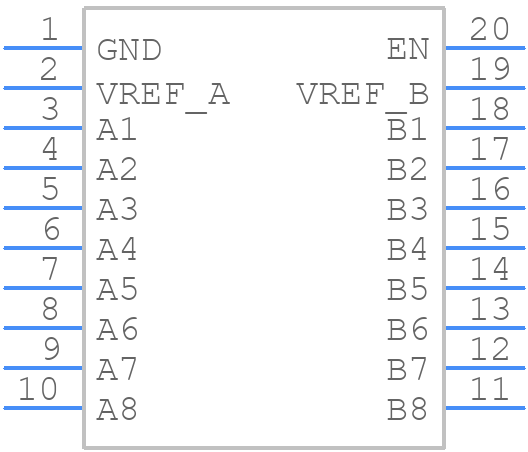

Use the download button to access the LSF0108QPWRQ1 schematic symbol, PCB footprint, and 3D model.
