LSF0108QWRKSRQ1 - Texas Instruments

Description: Translation - Voltage Levels Automotive eight-channel bidirectional multi-voltage-level translator 20-VQFN -40 to 125

Download LSF0108QWRKSRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

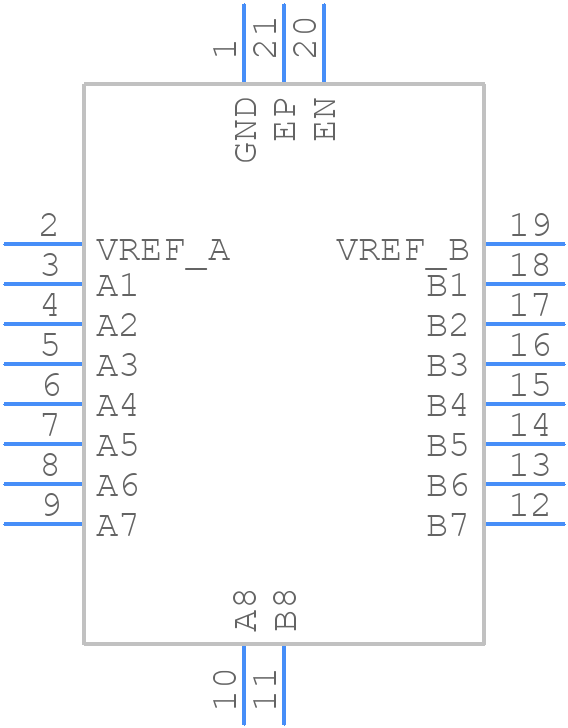

LSF0108QWRKSRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LSF0108QWRKSRQ1 - Texas Instruments PCB footprint - Other - Other - RKS0020B_2024
click to zoom
3D Models
LSF0108QWRKSRQ1 - Texas Instruments - 3D model - Other - RKS0020B_2024
click to zoom

LSF0108QWRKSRQ1 Details

  • Manufacturer Part Number:

    LSF0108QWRKSRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Delay-Max:

    2.2 ns

  • Interface IC Type:

    VOLTAGE LEVEL TRANSLATOR

  • JESD-30 Code:

    R-PQCC-N20

  • JESD-609 Code:

    e4

  • Length:

    4.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Latch or Register:

    LATCH

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.1X.18,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    5 mA

  • Supply Voltage-Max:

    5 V

  • Supply Voltage-Min:

    0.95 V

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    2.5 mm

LSF0108QWRKSRQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-speed PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines.
  • To ensure signal integrity, use a signal integrity analysis tool to simulate the signal transmission, and consider factors such as signal rise time, transmission line impedance, and termination. Also, use a low-loss PCB material and follow good PCB design practices.
  • The maximum operating temperature range for LSF0108QWRKSRQ1 is -40°C to 125°C, but it's recommended to operate within the specified temperature range for optimal performance and reliability.
  • ESD protection is critical when handling LSF0108QWRKSRQ1. Use an ESD wrist strap or mat, and follow proper handling and storage procedures to prevent damage from electrostatic discharge.
  • The recommended power sequencing for LSF0108QWRKSRQ1 is to power up the VCC supply before the VTT supply, and to power down the VTT supply before the VCC supply. This ensures proper device operation and prevents damage.
