Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as using a solid ground plane, minimizing trace lengths, and avoiding vias under the device. Additionally, ensure that the input and output traces are separated to prevent noise coupling.
The LSF0204DYZPR has a thermal pad on the bottom, which should be connected to a solid ground plane or a thermal relief pattern on the PCB. Ensure good airflow around the device, and consider using a heat sink or thermal interface material if the device will be operating in high-temperature environments.
While the datasheet specifies a maximum operating frequency of 100 MHz, the actual frequency limit depends on the specific application, PCB layout, and signal integrity. In general, it's recommended to derate the frequency by 10-20% to ensure reliable operation.
To ensure signal integrity, use controlled impedance traces, minimize trace lengths, and avoid sharp corners or bends. Additionally, use termination resistors or series resistors to match the impedance of the signal lines, and consider using a signal integrity analysis tool to simulate and optimize the design.
Texas Instruments recommends using a 10 uF ceramic capacitor in parallel with a 100 nF ceramic capacitor, both with a voltage rating of 10 V or higher, as close to the device as possible. This helps to filter out noise and ensure stable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LSF0204DYZPR Overview

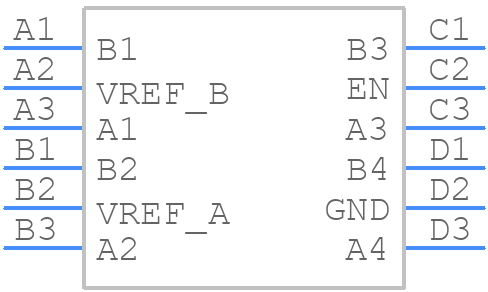

Use the download button to access the LSF0204DYZPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LSF02,
or try a keyword search, such as Level Translators
