LSHD-7803 - Lite-On

Description: LED Displays & Accessories Green, Low Current 0.3", CCRHD

Download LSHD-7803 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

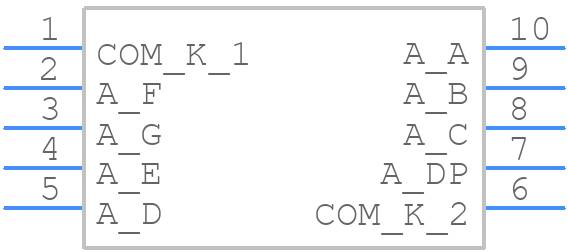

Symbol
LSHD-7803 - Lite-On - PCB symbol
click to zoom
PCB Footprints
LSHD-7803 - Lite-On PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - LSHD-7803_2021
click to zoom

LSHD-7803 Details

  • Manufacturer Part Number:

    LSHD-7803

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.20.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Lite-On Semiconductor Corporation

  • YTEOL:

    6

  • Color:

    GREEN

  • Configuration:

    COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    7.62 mm

  • Forward Current-Max:

    0.025 A

  • Number of Functions:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -35 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

LSHD-7803 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for LSHD-7803 is 3.3V to 5V, with a typical voltage of 3.3V.
  • To ensure the stability of the output voltage, it is recommended to use a 10uF ceramic capacitor at the output pin and a 1uF ceramic capacitor at the input pin, and to keep the input voltage stable.
  • The maximum output current of LSHD-7803 is 300mA, but it is recommended to keep the output current below 200mA for stable operation.
  • To protect LSHD-7803 from overheating, it is recommended to provide a heat sink or a metal pad on the PCB, and to keep the ambient temperature below 85°C.
  • Yes, LSHD-7803 is compatible with lead-free soldering, but it is recommended to follow the recommended soldering profile to avoid damaging the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LSHD-7803 Overview

Use the download button to access the LSHD-7803 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like LSHD-, or try a keyword search, such as LED Displays
