LSM303C - STMicroelectronics

Description: STMICROELECTRONICS - LSM303C - 3D ACCELEROMETER/MAGNETOMETER, LGA-12

Download LSM303C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

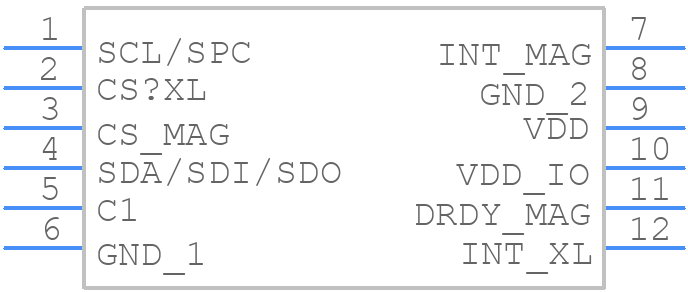

Symbol
LSM303C - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
LSM303C - STMicroelectronics PCB footprint - Other - Other - LGA-12
click to zoom
3D Models
LSM303C - STMicroelectronics - 3D model - Other - LGA-12
click to zoom

LSM303C Details

  • Manufacturer Part Number:

    LSM303C

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    LGA

  • Package Description:

    2 X 2 MM, 1 MM HEIGHT, GREEN, PLASTIC, LGA-12

  • Pin Count:

    12

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PBGA-B12

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFLGA

  • Package Equivalence Code:

    LCC12,.08SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.9 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL GOLD

  • Terminal Form:

    BUTT

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

LSM303C Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to power up the accelerometer first, followed by the magnetometer. This ensures that the magnetometer is not affected by the accelerometer's power-on reset.
  • The self-test feature is used to verify the functionality of the accelerometer and magnetometer. To perform a self-test, set the ST1 register to 0x01 for the accelerometer or 0x02 for the magnetometer. The device will then perform a self-test and set the ST2 register accordingly. The self-test result can be read from the ST2 register.
  • The temperature sensor is used to compensate for temperature-related drift in the accelerometer and magnetometer measurements. The temperature data can be used to correct the sensor readings, ensuring higher accuracy over a wide temperature range.
  • The interrupt pins can be configured to generate interrupts based on various events, such as data ready, overrun, or threshold exceedance. The interrupt configuration is done through the INT1_CFG and INT2_CFG registers. The interrupt pins can be configured as active-high or active-low, and can be connected to a microcontroller or other external devices.
  • The LSM303C is a sensitive device and requires careful layout and placement on a PCB to ensure optimal performance. It is recommended to place the device away from noise sources, such as power supplies and high-frequency circuits. The device should also be placed on a solid ground plane to reduce noise and electromagnetic interference.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LSM303C Overview

Use the download button to access the LSM303C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LSM30, or try a keyword search, such as Other Signal Circuits
