LSM303DLHCTR footprint, schematic symbol and 3D model by STMicroelectronics

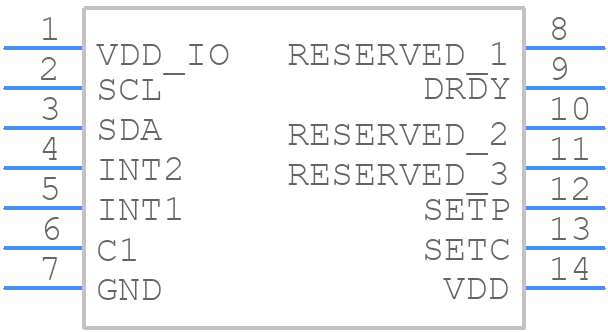

Symbol

click to zoom

PCB Footprints

LSM303DLHCTR - STMicroelectronics PCB footprint - Other - Other - LGA14 3x5x1 14L

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for LSM303DLHCTR
Part Number LSM303DLHCTR
Manufacturer STMicroelectronics
Pin Count 14
Part Category Accelerometer
Package Category Other
Footprint Name Other - LGA14 3x5x1 14L
Released Date Sep 5, 2017
Last Modified Date Jan 8, 2026 2:31 PM UTC
Pinout / Pin List Click Here (Member Only)

LSM303DLHCTR Details

Manufacturer Part Number:
LSM303DLHCTR
Brand Name:
STMicroelectronics
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Part Package Code:
LGA
Package Description:
LGA-14
Pin Count:
14
HTS Code:
8542.39.00.01
Manufacturer:
STMicroelectronics
YTEOL:
0
Analog IC - Other Type:
ANALOG CIRCUIT
JESD-30 Code:
R-PBGA-BU14
JESD-609 Code:
e4
Length:
5 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Terminals:
14
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
VFLGA
Package Equivalence Code:
LCC14,.12X.2,32
Package Shape:
RECTANGULAR
Package Style:
GRID ARRAY, VERY THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1 mm
Supply Voltage-Max (Vsup):
3.6 V
Supply Voltage-Min (Vsup):
2.16 V
Supply Voltage-Nom (Vsup):
2.5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
NICKEL PALLADIUM GOLD
Terminal Form:
BUTT
Terminal Pitch:
0.8 mm
Terminal Position:
BOTTOM
Width:
3 mm

LSM303DLHCTR Frequently Asked Questions (FAQs)

The recommended power-on sequence is to power up the accelerometer (ACC) first, followed by the magnetometer (MAG). This ensures proper initialization and avoids any potential issues with the device.
The LSM303DLHCTR has multiple operating modes, including low-power, normal, and high-resolution modes. The mode selection is done through the CTRL_REG1 and CTRL_REG2 registers. Refer to the datasheet for specific register settings and mode descriptions.
The internal low-pass filter is used to reduce noise and aliasing in the accelerometer and magnetometer outputs. It can be enabled or disabled through the CTRL_REG1 register. The filter cutoff frequency is approximately 220 Hz.
The magnetometer requires calibration to compensate for hard-iron and soft-iron effects. This can be done by rotating the device in a figure-eight pattern and recording the maximum and minimum values for each axis. The calibration process involves calculating the offset and scale factors for each axis.
The maximum sampling rate of the LSM303DLHCTR is 1.344 kHz for the accelerometer and 3.125 kHz for the magnetometer. However, the actual sampling rate may be limited by the interface and system design.
