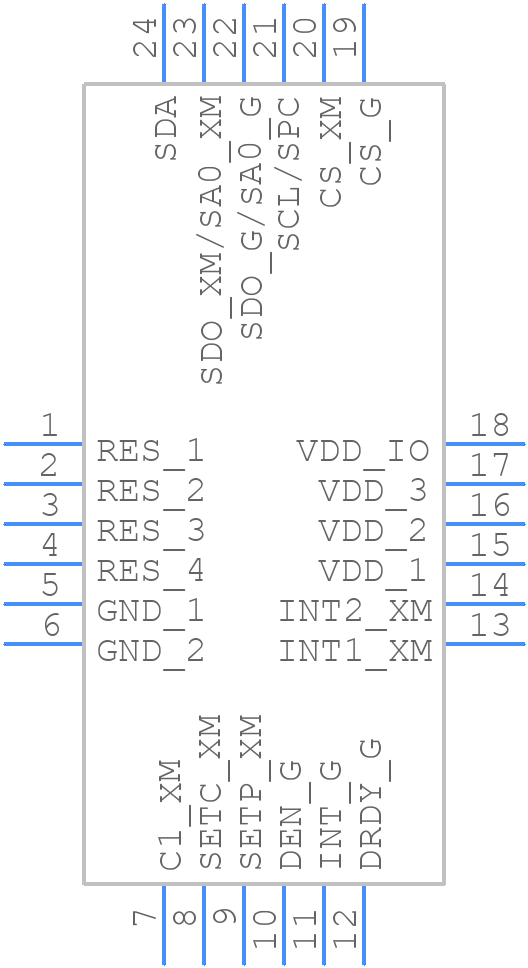

LSM9DS0 - STMicroelectronics

LSM9DS0 Frequently Asked Questions (FAQs)

• What is the recommended power-on sequence for the LSM9DS0?
  The recommended power-on sequence is to power up the accelerometer and gyroscope simultaneously, followed by the magnetometer. This ensures proper initialization and calibration of the sensors.
• How do I handle the different output data rates for the accelerometer, gyroscope, and magnetometer?
  The LSM9DS0 allows for independent configuration of the output data rates for each sensor. Use the CTRL_REG1_G, CTRL_REG2_G, and CTRL_REG3_M registers to set the desired output data rates for the gyroscope, accelerometer, and magnetometer, respectively.
• What is the purpose of the INT1 and INT2 pins, and how do I use them?
  The INT1 and INT2 pins are interrupt pins that can be configured to generate interrupts based on specific events, such as data ready, FIFO threshold, or sensor overflow. Use the INT_CTRL_REG and INT_SRC_REG registers to configure the interrupt sources and enable the interrupt pins.
• How do I calibrate the magnetometer to compensate for hard-iron and soft-iron effects?
  The LSM9DS0 magnetometer requires calibration to compensate for hard-iron and soft-iron effects. Use the MAG_OFFSET_X, MAG_OFFSET_Y, and MAG_OFFSET_Z registers to set the offset values, and the MAG_SCALE_X, MAG_SCALE_Y, and MAG_SCALE_Z registers to set the scale factors. These values can be determined through a calibration process, such as the ellipsoid fitting method.
• What is the purpose of the FIFO buffer, and how do I use it?
  The FIFO buffer is a 32-word buffer that stores sensor data, allowing for burst mode operation and reducing the number of I2C transactions. Use the FIFO_CTRL_REG and FIFO_SRC_REG registers to configure the FIFO mode, threshold, and trigger settings.
