LSR05-TP - MCC

Description: 18V Clamp 5A (8/20µs) Ipp Tvs Diode Surface Mount SOT-143

Download LSR05-TP Model

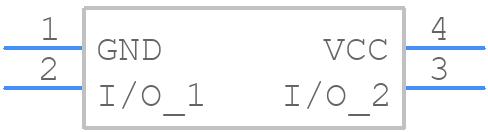

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LSR05-TP - MCC PCB footprint - Other - Other - SOT-143_2024
click to zoom
3D Models
LSR05-TP - MCC  - 3D model - Other - SOT-143_2024
click to zoom

LSR05-TP Details

  • Manufacturer Part Number:

    LSR05-TP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Manufacturer:

    Micro Commercial Components

  • YTEOL:

    6.28

  • Additional Feature:

    ULTRA LOW CAPACITANCE

  • Breakdown Voltage-Min:

    6 V

  • Clamping Voltage-Max:

    12 V

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JESD-30 Code:

    R-PDSO-G4

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Non-rep Peak Rev Power Dis-Max:

    90 W

  • Number of Elements:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    UNIDIRECTIONAL

  • Reference Standard:

    IEC-61000-4-2, 4-4, 4-5

  • Rep Pk Reverse Voltage-Max:

    5 V

  • Reverse Current-Max:

    0.5 µA

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10
