LT1009S8#PBF - Analog Devices

Description: Shunt Voltage Reference IC ±0.4% 8-SOIC

Download LT1009S8#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

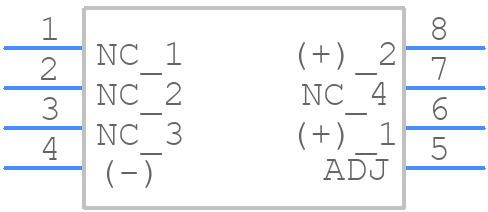

LT1009S8#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1009S8#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8 Package
click to zoom
3D Models
LT1009S8#PBF - Analog Devices - 3D model - Small Outline Packages - S8 Package
click to zoom

LT1009S8#PBF Details

  • Manufacturer Part Number:

    LT1009S8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLATSIC, SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1610 (S8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    REFERENCE VOLTAGE CAN BE ADJUSTED TO +/-5%

  • Analog IC - Other Type:

    TWO TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Voltage-Max:

    2.51 V

  • Output Voltage-Min:

    2.49 V

  • Output Voltage-Nom:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temp Coef of Voltage-Max:

    25 ppm/°C

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    YES

  • Width:

    3.9 mm

LT1009S8#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1009S8 involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a separate analog ground plane and to keep the power supply traces away from the analog signals.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the output capacitor is of sufficient value and type (e.g., X5R or X7R) to maintain stability. Additionally, consider adding a small series resistor (e.g., 10-20 ohms) in the output stage to improve stability.
  • The maximum input voltage that the LT1009S8 can handle is 15V. Exceeding this voltage may cause damage to the device or affect its performance.
  • The LT1009S8 is rated for operation up to 125°C. However, it's essential to consider the device's thermal characteristics and ensure that the junction temperature (TJ) does not exceed 150°C. Proper heat sinking and thermal management are crucial in high-temperature environments.
  • To troubleshoot issues, start by verifying the input voltage, output voltage, and current consumption. Check for proper PCB layout, component values, and soldering quality. Use an oscilloscope to inspect the output waveform and look for signs of oscillation or instability. Consult the datasheet and application notes for guidance on troubleshooting common issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT1009S8#PBF Overview

Use the download button to access the LT1009S8#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT100, or try a keyword search, such as Voltage References

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
