LT1011CS8#TRPBF - Analog Devices

Description: Analog Comparators V Comp

Download LT1011CS8#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

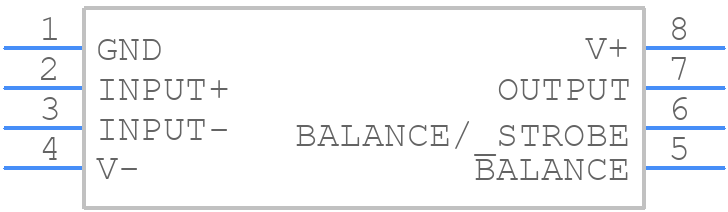

Symbol
LT1011CS8#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1011CS8#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8 Package
click to zoom
3D Models
LT1011CS8#TRPBF - Analog Devices - 3D model - Small Outline Packages - S8 Package
click to zoom

LT1011CS8#TRPBF Details

  • Manufacturer Part Number:

    LT1011CS8#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, LEAD FREE, PLASTIC, SO-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1610 (S8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.05 µA

  • Input Offset Voltage-Max:

    3000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Type:

    OPEN-COLLECTOR

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    150 ns

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

LT1011CS8#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1011CS8 involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure stability, ensure that the output capacitor is within the recommended range (10uF to 100uF), the input capacitor is at least 10uF, and the ESR of the output capacitor is within the recommended range (0.05Ω to 5Ω). Also, avoid using capacitors with high ESL.
  • The maximum power dissipation of the LT1011CS8 is 1.4W. However, this can be limited by the thermal resistance of the package and the ambient temperature. It's essential to ensure proper heat sinking and thermal management to prevent overheating.
  • The LT1011CS8 is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to consider the device's thermal characteristics and ensure proper heat sinking and thermal management in high-temperature applications.
  • To protect the LT1011CS8 from input voltage transients, use a TVS (Transient Voltage Suppressor) diode or a voltage clamp circuit at the input. This will help prevent damage from voltage spikes and surges.
