LT1013CPE4 - Texas Instruments

Description: Precision Amplifiers Dual Prec Lo-Pwr Op Amp

Download LT1013CPE4 Model

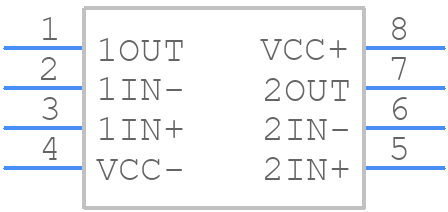

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LT1013CPE4 - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - P (R-PDIP-T8)
click to zoom
3D Models
LT1013CPE4 - Texas Instruments  - 3D model - Dual-In-Line Packages - P (R-PDIP-T8)
click to zoom

LT1013CPE4 Details

  • Manufacturer Part Number:

    LT1013CPE4

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    ROHS COMPLIANT, PLASTIC, DIP-8

  • Pin Count:

    8

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.038 µA

  • Bias Current-Max (IIB) @25C:

    0.03 µA

  • Common-mode Reject Ratio-Min:

    94 dB

  • Common-mode Reject Ratio-Nom:

    114 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.002 µA

  • Input Offset Voltage-Max:

    300 µV

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e4

  • Length:

    9.81 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -22 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Slew Rate-Min:

    0.2 V/us

  • Slew Rate-Nom:

    0.4 V/us

  • Subcategory:

    Operational Amplifier

  • Supply Current-Max:

    1.1 mA

  • Supply Voltage Limit-Max:

    22 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Unity Gain BW-Nom:

    700

  • Voltage Gain-Min:

    500000

  • Wideband:

    NO

  • Width:

    7.62 mm

LT1013CPE4 Frequently Asked Questions (FAQs)

  • The maximum power dissipation of the LT1013CPE4 is 670mW, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (θJA) of 125°C/W.
  • To ensure stability in a unity-gain buffer configuration, add a 10-22pF capacitor between the output and the inverting input pins to prevent oscillations. Additionally, use a low-ESR capacitor (e.g., ceramic or film capacitor) to minimize phase shift.
  • Use a star-grounding technique, where the grounds of the power supplies, analog circuits, and digital circuits are connected at a single point. Keep the layout symmetrical, and use a ground plane to minimize noise and radiation. Place the LT1013CPE4 close to the bypass capacitors and use short, direct traces to minimize inductance.
  • While the LT1013CPE4 can be used as a comparator, it's not the most suitable choice due to its relatively slow slew rate (0.5V/μs) and limited bandwidth (3MHz). For comparator applications, consider using a dedicated comparator IC, such as the LM339 or LM393, which are designed for faster switching and higher accuracy.
  • Use ESD protection devices, such as TVS diodes or ESD arrays, on the input and output pins of the LT1013CPE4 to protect against electrostatic discharge. Follow proper PCB layout and handling practices to minimize the risk of ESD damage.
