The maximum power dissipation of the LT1014DDWE4 is dependent on the ambient temperature and the package thermal resistance. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature, but this can be derated to 0.7W at 70°C ambient temperature.
While the LT1014DDWE4 is an op-amp, it can be used as a comparator in certain applications. However, it's not recommended for high-speed or high-frequency comparator applications due to its limited slew rate and bandwidth. Additionally, the output stage is not designed to drive low-impedance loads, so it may not be suitable for all comparator applications.
To minimize noise and ensure optimal performance, it's essential to follow good PCB layout practices. Keep the input and output traces short and separate, avoid running digital and analog traces together, and use a solid ground plane. Additionally, decouple the power supply pins with capacitors and use a low-ESR capacitor for the bypass capacitor. Consult the datasheet and application notes for more detailed layout guidelines.
The recommended capacitor value for the bypass pin (Pin 8) is 0.1uF to 1uF, with a low-ESR ceramic capacitor being a good choice. This capacitor helps to filter out high-frequency noise and ensure stable operation.
Yes, the LT1014DDWE4 can be used in a single-supply application, but it requires careful consideration of the input common-mode range and output voltage swing. The input common-mode range is limited to within 2V of the supply rails, and the output voltage swing is limited to within 1.5V of the supply rails. Consult the datasheet and application notes for more detailed guidance on single-supply operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LT1014DDWE4 Overview

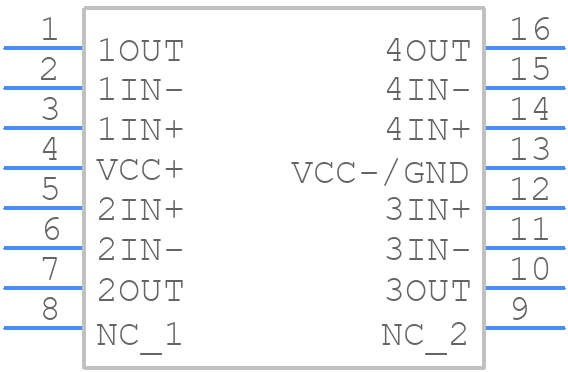

Use the download button to access the LT1014DDWE4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT101,
or try a keyword search, such as Operational Amplifiers
