Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the input and output traces as short as possible. Additionally, it's recommended to use a common-mode choke or ferrite bead to filter out high-frequency noise.
To ensure stability, make sure to follow the recommended compensation network values and layout guidelines. Also, ensure that the output capacitor is properly sized and placed close to the output pin. Additionally, avoid using long output traces and minimize the area of the output loop.
The maximum safe operating area (SOA) for the LT1014DDWRE4 is not explicitly stated in the datasheet. However, it's recommended to follow the absolute maximum ratings and ensure that the device operates within the recommended operating conditions to avoid damage or degradation.
The LT1014DDWRE4 is rated for operation up to 125°C. However, it's recommended to derate the device's performance and ensure proper thermal management to avoid overheating. Additionally, consider using a heat sink or thermal interface material to improve heat dissipation.
To troubleshoot issues with the LT1014DDWRE4, start by verifying the PCB layout and ensuring that it meets the recommended guidelines. Check for proper power supply decoupling, and ensure that the input and output capacitors are properly sized and placed. Use an oscilloscope to measure the output voltage and current, and look for signs of oscillation or instability. Consult the datasheet and application notes for additional troubleshooting guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LT1014DDWRE4 Overview

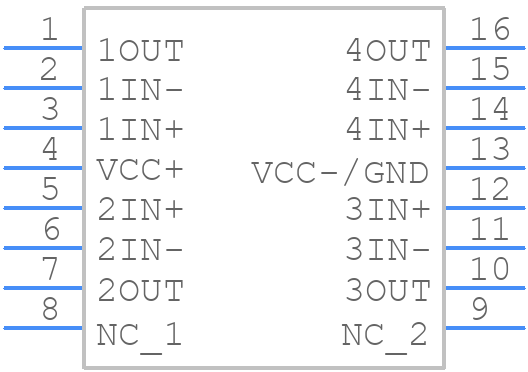

Use the download button to access the LT1014DDWRE4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT101,
or try a keyword search, such as Operational Amplifiers
