LT1016IN8#PBF - Analog Devices

Description: 10mA, UltraFast Precision 10ns Comparator with Latch CMOS, Complementary, TTL 8-PDIP

Download LT1016IN8#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

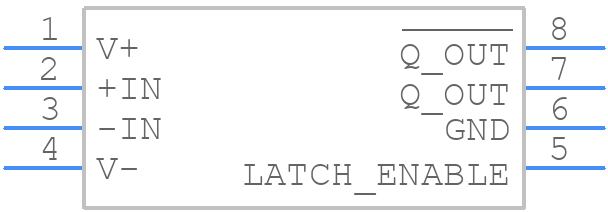

LT1016IN8#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1016IN8#PBF - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N Package 8-Lead PDIP (Narrow .300 Inch)
click to zoom
3D Models
LT1016IN8#PBF - Analog Devices - 3D model - Dual-In-Line Packages - N Package 8-Lead PDIP (Narrow .300 Inch)
click to zoom

LT1016IN8#PBF Details

  • Manufacturer Part Number:

    LT1016IN8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1510 (N8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    13 µA

  • Input Offset Voltage-Max:

    3500 µV

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.375 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -7 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    TOTEM POLE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    10 ns

  • Seated Height-Max:

    3.937 mm

  • Supply Current-Max:

    35 mA

  • Supply Voltage Limit-Max:

    7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.62 mm

LT1016IN8#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1016IN8 involves keeping the input and output traces short and separate, using a solid ground plane, and placing the bypass capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended compensation network, use a minimum output capacitance of 10uF, and avoid capacitive loads. Also, ensure that the device is operated within its recommended operating conditions and that the input voltage is within the specified range.
  • The maximum power dissipation of the LT1016IN8 is dependent on the package type and the ambient temperature. For the IN8 package, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, it is recommended to derate the power dissipation based on the ambient temperature and the device's thermal resistance.
  • While the LT1016IN8 can be used as a voltage regulator, it is not recommended due to its limited output current capability and lack of built-in short-circuit protection. Instead, consider using a dedicated voltage regulator IC that is designed for voltage regulation applications.
  • To protect the LT1016IN8 from overvoltage and ESD, use a voltage clamp or a transient voltage suppressor (TVS) diode at the input, and ensure that the device is handled and stored in an ESD-safe environment. Also, follow proper PCB design and layout practices to minimize the risk of ESD damage.
