LT1019IN8-5#PBF - Analog Devices

Description: Linear Technology LT1019IN8-5#PBF, Series/Shunt Voltage Reference 5V, 0.05% 40 V max., 8-Pin PDIP

Download LT1019IN8-5#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

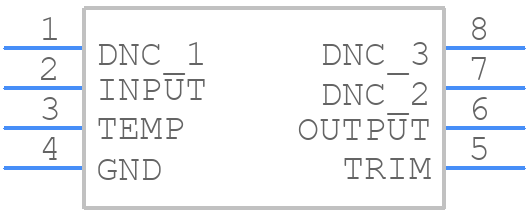

Symbol
LT1019IN8-5#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1019IN8-5#PBF - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8- PDIP
click to zoom
3D Models
LT1019IN8-5#PBF - Analog Devices - 3D model - Dual-In-Line Packages - 8- PDIP
click to zoom

LT1019IN8-5#PBF Details

  • Manufacturer Part Number:

    LT1019IN8-5#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.300 INCH, PLASTIC, DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1510 (N8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    10.16 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    5.25 V

  • Output Voltage-Min:

    4.35 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.937 mm

  • Supply Current-Max (Isup):

    1.5 mA

  • Supply Voltage-Max (Vsup):

    40 V

  • Supply Voltage-Min (Vsup):

    6.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temp Coef of Voltage-Max:

    20 ppm/°C

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    YES

  • Width:

    7.62 mm

LT1019IN8-5#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1019IN8-5 involves keeping the input and output traces short and separate, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended compensation network, use a minimum output capacitance of 10uF, and avoid capacitive loads. Also, ensure that the input voltage is within the recommended range and the device is operated within its specified temperature range.
  • The maximum power dissipation of the LT1019IN8-5 is dependent on the package type and the ambient temperature. For the IN8 package, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, it is recommended to derate the power dissipation based on the ambient temperature and the thermal resistance of the package.
  • The LT1019IN8-5 is rated for operation up to 125°C junction temperature. However, the device's performance and reliability may degrade at high temperatures. It is recommended to derate the output current and power dissipation at high temperatures and to ensure that the device is operated within its specified temperature range.
  • To protect the LT1019IN8-5 from input voltage transients, use a TVS (Transient Voltage Suppressor) diode or a voltage clamp at the input. Additionally, ensure that the input voltage is within the recommended range and use a filter capacitor to reduce noise and transients.
