LT1021BCN8-5#PBF - Analog Devices

Description: LT1021BCN85#PBF, Precision Voltage Reference 5V 1% 10mA 40 V max. 8-Pin PDIP N

Download LT1021BCN8-5#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

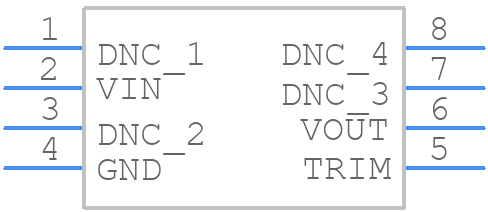

Symbol
LT1021BCN8-5#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1021BCN8-5#PBF - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8-Lead PDIP (Narrow .300 Inch)
click to zoom
3D Models
LT1021BCN8-5#PBF - Analog Devices - 3D model - Dual-In-Line Packages - 8-Lead PDIP (Narrow .300 Inch)
click to zoom

LT1021BCN8-5#PBF Details

  • Manufacturer Part Number:

    LT1021BCN8-5#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.300 INCH, LEAD FREE, PLASTIC, DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1510 (N8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.78 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Voltage-Max:

    5.05 V

  • Output Voltage-Min:

    4.95 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.445 mm

  • Supply Current-Max (Isup):

    1.5 mA

  • Supply Voltage-Max (Vsup):

    40 V

  • Supply Voltage-Min (Vsup):

    7.2 V

  • Supply Voltage-Nom (Vsup):

    10 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temp Coef of Voltage-Max:

    5 ppm/°C

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    YES

  • Width:

    7.62 mm

LT1021BCN8-5#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1021BCN8-5 involves keeping the input and output traces short and separate, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended capacitor values and types, keep the input and output impedance low, and avoid capacitive loads. Also, ensure that the device is properly decoupled and the power supply is clean and well-regulated.
  • The maximum power dissipation of the LT1021BCN8-5 is dependent on the package type and the ambient temperature. For the 8-pin PDIP package, the maximum power dissipation is 1.4W at 25°C. However, it's recommended to derate the power dissipation based on the ambient temperature and the thermal resistance of the package.
  • While the LT1021BCN8-5 can be used as a voltage regulator, it's not the most suitable device for this application. The device is designed as a precision voltage reference, and its output current capability is limited to 10mA. For voltage regulation, it's recommended to use a dedicated voltage regulator IC.
  • To protect the LT1021BCN8-5 from overvoltage and ESD, use a voltage clamp or a transient voltage suppressor (TVS) diode at the input. Also, ensure that the device is handled and stored in an ESD-safe environment, and use ESD protection devices such as wrist straps and mats during assembly and testing.
