- Stock & Prices $ Price & Stock for LT1021BMH-10
- Part Number LT1021BMH-10
- Manufacturer Analog Devices
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - H Package 8-Lead TO-5 Metal Can (.200 Inch PCD)-2021
- Released Date Aug 11, 2023
- Last Modified Date Aug 11, 2023 9:36 AM UTC
- Pinout / Pin List Click Here (Member Only)
LT1021BMH-10 Details
-
Manufacturer Part Number:
LT1021BMH-10
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Part Life Cycle Code:
Active
-
Package Description:
TO-5, 8 PIN
-
Pin Count:
8
-
Manufacturer Package Code:
05-08-1320
-
Country Of Origin:
Philippines
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Analog Devices Inc
LT1021BMH-10 Frequently Asked Questions (FAQs)
-
A good PCB layout for the LT1021BMH-10 involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power supply bypass capacitors. Additionally, it's recommended to use a Kelvin connection for the output voltage sense pins to minimize errors.
-
To ensure stability, make sure to follow the recommended compensation network values and layout guidelines in the datasheet. Additionally, use a low-ESR output capacitor and ensure the output voltage sense pins are properly connected. If oscillations occur, try adding a small capacitor (e.g., 10nF) between the output and ground pins.
-
Although the datasheet specifies a maximum input voltage of 15V, it's recommended to limit the input voltage to 12V to ensure reliable operation and prevent damage to the device. Exceeding 12V may cause internal voltage regulators to malfunction.
-
The LT1021BMH-10 is rated for operation up to 125°C, but its performance may degrade at high temperatures. Ensure proper heat sinking and consider derating the output current to prevent overheating. Additionally, consult the datasheet for thermal resistance and junction temperature calculations.
-
To troubleshoot issues, start by verifying the input voltage, output voltage, and output current. Check the PCB layout and ensure proper connections. Use an oscilloscope to monitor the output voltage and input voltage ripple. Consult the datasheet and application notes for troubleshooting guides and common pitfalls.
Trust Checks
Expert Contribution
System Verified
Community Approved
LT1021BMH-10 Overview

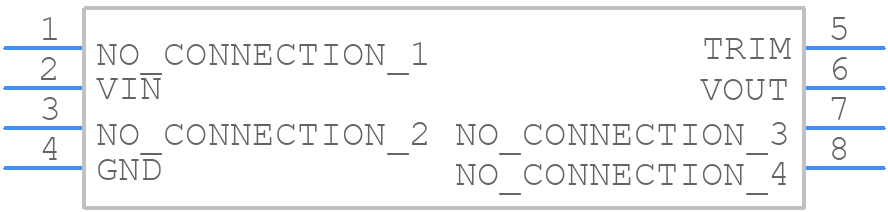

Use the download button to access the LT1021BMH-10 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT102,
or try a keyword search, such as Voltage References
