LT1021BMH-5 footprint, schematic symbol and 3D model by Analog Devices

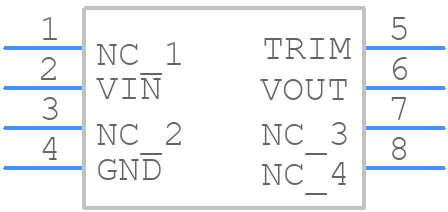

Symbol

click to zoom

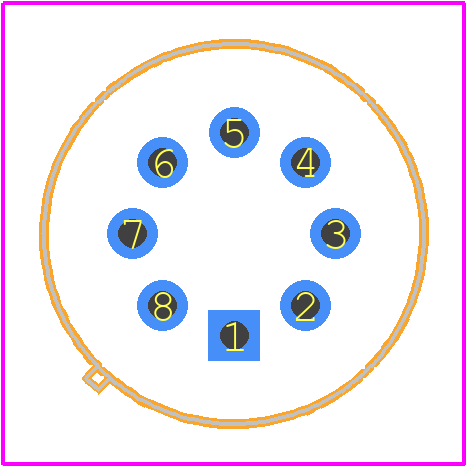

PCB Footprints

LT1021BMH-5 - Analog Devices PCB footprint - Other - Other - H PACKAGE 8-LEAD TO-5 METAL CAN

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for LT1021BMH-5
Part Number LT1021BMH-5
Manufacturer Analog Devices
Pin Count 8
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - H PACKAGE 8-LEAD TO-5 METAL CAN
Released Date May 17, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

LT1021BMH-5 Details

Manufacturer Part Number:
LT1021BMH-5
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Part Life Cycle Code:
Active
Package Description:
TO-5, 8 PIN
Pin Count:
8
Manufacturer Package Code:
05-08-1320
Country Of Origin:
Philippines
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
10
Analog IC - Other Type:
THREE TERMINAL VOLTAGE REFERENCE
JESD-30 Code:
O-MBCY-W8
JESD-609 Code:
e0
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
8
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Output Current-Max:
0.01 A
Output Voltage-Max:
5.05 V
Output Voltage-Min:
4.95 V
Output Voltage-Nom:
5 V
Package Body Material:
METAL
Package Code:
BCY
Package Equivalence Code:
CAN8,.2
Package Shape:
ROUND
Package Style:
CYLINDRICAL
Peak Reflow Temperature (Cel):
245
Qualification Status:
Not Qualified
Supply Current-Max (Isup):
1.5 mA
Supply Voltage-Max (Vsup):
40 V
Supply Voltage-Min (Vsup):
7.2 V
Supply Voltage-Nom (Vsup):
10 V
Surface Mount:
NO
Technology:
BIPOLAR
Temp Coef of Voltage-Max:
5 ppm/°C
Temperature Grade:
MILITARY
Terminal Finish:
Tin/Lead (Sn/Pb)
Terminal Form:
WIRE
Terminal Position:
BOTTOM
Time@Peak Reflow Temperature-Max (s):
20
Trim/Adjustable Output:
YES
Voltage Tolerance-Max:
1%

LT1021BMH-5 Frequently Asked Questions (FAQs)

A good PCB layout for the LT1021BMH-5 involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, make sure to follow the recommended capacitor values and types, keep the input and output impedance low, and avoid capacitive loading on the output. Also, ensure that the device is operated within its recommended operating conditions.
The maximum power dissipation of the LT1021BMH-5 is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature.
The LT1021BMH-5 is rated for operation up to 125°C junction temperature. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's power dissipation and ensure proper thermal management in high-temperature applications.
To protect the LT1021BMH-5 from input voltage transients, use a voltage transient suppressor or a TVS diode at the input. Additionally, ensure that the input capacitor is rated for the maximum input voltage and is placed close to the device.
