LT1027DILS8-5#PBF - Analog Devices

Description: Series Voltage Reference IC Fixed 5V V ±0.1% 15 mA 8-CLCC (5x5)

Download LT1027DILS8-5#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

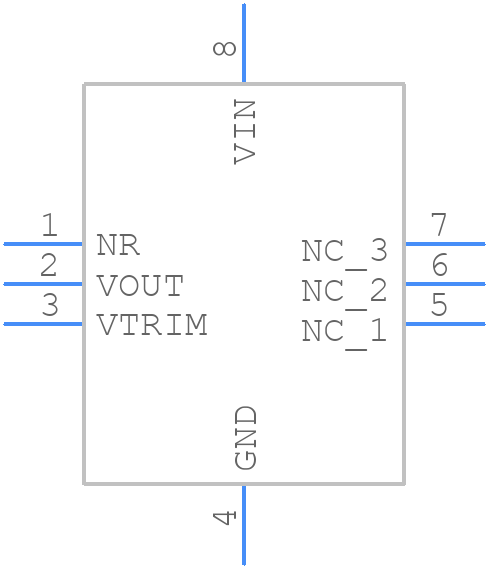

LT1027DILS8-5#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1027DILS8-5#PBF - Analog Devices PCB footprint - Other - Other - LT1027DILS8-5#PBF-2
click to zoom
3D Models
LT1027DILS8-5#PBF - Analog Devices - 3D model - Other - LT1027DILS8-5#PBF-2
click to zoom

LT1027DILS8-5#PBF Details

  • Manufacturer Part Number:

    LT1027DILS8-5#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LCC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1852

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    S-CQCC-N8

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    5.005 V

  • Output Voltage-Min:

    4.995 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Code:

    HQCCN

  • Package Equivalence Code:

    LCC8,.2SQ

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.55 mm

  • Supply Voltage-Max (Vsup):

    40 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    10 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temp Coef of Voltage-Max:

    5 ppm/°C

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    YES

  • Width:

    5 mm

LT1027DILS8-5#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1027 involves keeping the input and output traces short and separate, using a solid ground plane, and placing the bypass capacitors close to the device. A 4-layer board with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended compensation network, use a minimum output capacitance of 10uF, and keep the input and output resistors within the recommended range. Also, avoid using long input traces and keep the device away from noise sources.
  • The maximum power dissipation of the LT1027 is dependent on the package type and the ambient temperature. For the DILS8 package, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, it's recommended to derate the power dissipation based on the ambient temperature and the device's thermal resistance.
  • The LT1027 is not recommended for high-current applications. It's designed for low-power, low-noise applications and has a maximum output current of 10mA. For high-current applications, consider using a dedicated voltage regulator IC with a higher current rating.
