LT1039ISW#PBF - Analog Devices

Description: RS-232 Interface IC Triple RS232 Driver/Receiver

Download LT1039ISW#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

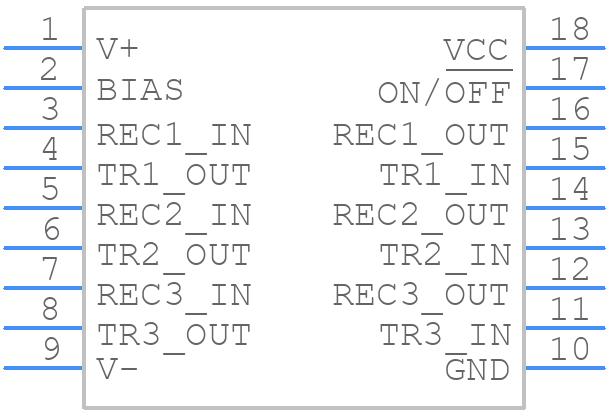

Symbol
LT1039ISW#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1039ISW#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SW Package
click to zoom
3D Models
LT1039ISW#PBF - Analog Devices - 3D model - Small Outline Packages - SW Package
click to zoom

LT1039ISW#PBF Details

  • Manufacturer Part Number:

    LT1039ISW#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.300 INCH, PLASTIC, SOP-18

  • Pin Count:

    18

  • Manufacturer Package Code:

    05-08-1620 (SW18)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    1 RECEIVER ACTIVE UNDER SHUTDOWN

  • Differential Output:

    NO

  • Driver Number of Bits:

    3

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232

  • JESD-30 Code:

    R-PDSO-G18

  • JESD-609 Code:

    e3

  • Length:

    11.55 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    3

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receiver Number of Bits:

    3

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    15 V

  • Supply Voltage-Min:

    5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

LT1039ISW#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1039ISW involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and parasitic inductance.
  • To ensure stability, ensure that the output capacitor is properly sized, the input voltage is within the recommended range, and the device is operated within its specified frequency range. Additionally, adding a small capacitor (e.g., 10nF) between the output and ground can help prevent oscillations.
  • The maximum power dissipation of the LT1039ISW is dependent on the package type and thermal resistance. For the ISW package, the maximum power dissipation is approximately 1.4W. To calculate power dissipation, use the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current.
  • The LT1039ISW is rated for operation up to 125°C, but its performance may degrade at high temperatures. Ensure that the device is properly heat-sinked and that the maximum junction temperature (150°C) is not exceeded. Consult the datasheet for thermal derating information.
  • To protect the LT1039ISW from input voltage transients and surges, use a TVS (transient voltage suppressor) diode or a voltage clamp circuit at the input. Additionally, ensure that the input capacitor is properly sized and rated for the maximum input voltage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT1039ISW#PBF Overview

Use the download button to access the LT1039ISW#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT103, or try a keyword search, such as Line Driver or Receivers
