LT1080CSW#PBF - Analog Devices

Description: Linear Technology LT1080CSW#PBF, Line Transceiver, RS-232 2-TX 2-RX 2-TRX, 5 V, 18-Pin SOIC

Download LT1080CSW#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

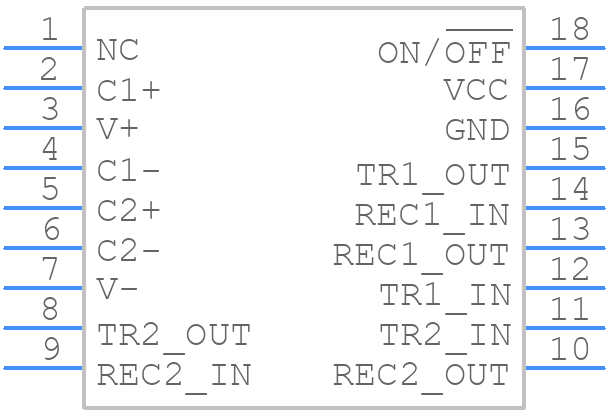

LT1080CSW#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1080CSW#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SW18
click to zoom
3D Models
LT1080CSW#PBF - Analog Devices - 3D model - Small Outline Packages - SW18
click to zoom

LT1080CSW#PBF Details

  • Manufacturer Part Number:

    LT1080CSW#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.300 INCH, PLASTIC, SO-18

  • Pin Count:

    18

  • Manufacturer Package Code:

    05-08-1620 (SW18)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    NO

  • Driver Number of Bits:

    2

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232

  • JESD-30 Code:

    R-PDSO-G18

  • JESD-609 Code:

    e3

  • Length:

    11.55 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receiver Number of Bits:

    2

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

LT1080CSW#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1080CSW involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the output capacitor has a low ESR (Equivalent Series Resistance) and is properly decoupled from the output voltage. A minimum output capacitance of 10uF is recommended.
  • The LT1080CSW has an operating temperature range of -40°C to 125°C. However, the maximum ambient temperature range depends on the specific application and the thermal design of the system. It is recommended to derate the device's power dissipation according to the ambient temperature.
  • Yes, the LT1080CSW is suitable for high-reliability and automotive applications. It is manufactured using a high-reliability process and is qualified to various automotive and industrial standards, including AEC-Q100 and IEC 60747-1.
  • Common issues with the LT1080CSW can be troubleshooted by checking the PCB layout, component values, and decoupling. Ensure that the input and output capacitors are properly decoupled, and that the output voltage is within the recommended range. Also, check for any signs of overheating or excessive power dissipation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT1080CSW#PBF Overview

Use the download button to access the LT1080CSW#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT108, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
