LT1101ACN8#PBF - Analog Devices

Description: IC INST AMP 1 CIRCUIT 8DIP

Download LT1101ACN8#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

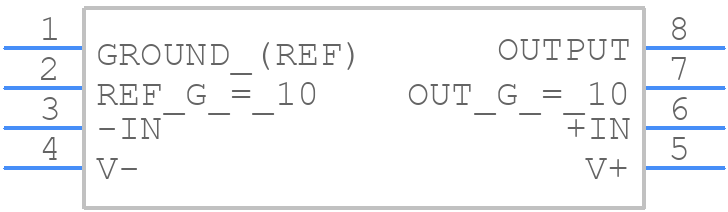

Symbol
LT1101ACN8#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1101ACN8#PBF - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N8 8-Lead PDIP
click to zoom
3D Models
LT1101ACN8#PBF - Analog Devices - 3D model - Dual-In-Line Packages - N8 8-Lead PDIP
click to zoom

LT1101ACN8#PBF Details

  • Manufacturer Part Number:

    LT1101ACN8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.300 INCH, PLASTIC, DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1510 (N8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.009 µA

  • Bandwidth (3dB)-Nom:

    0.037 MHz

  • Common-mode Reject Ratio-Min:

    98 dB

  • Input Offset Current-Max (IIO):

    0.0007 µA

  • Input Offset Voltage-Max:

    250 µV

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    10.16 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -22 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Non-linearity-Max:

    0.0075%

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.81 mm

  • Slew Rate-Nom:

    0.1 V/us

  • Supply Current-Max:

    0.165 mA

  • Supply Voltage Limit-Max:

    22 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Gain-Max:

    100

  • Voltage Gain-Min:

    10

  • Width:

    6.477 mm
