LT1101SW#PBF - Analog Devices

Description: Linear Technology LT1101SW#PBF Instrumentation Amplifier, 800μV Offset 33kHz GBW, CMMR 96dB, 5 V, 16-Pin SOIC

Download LT1101SW#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

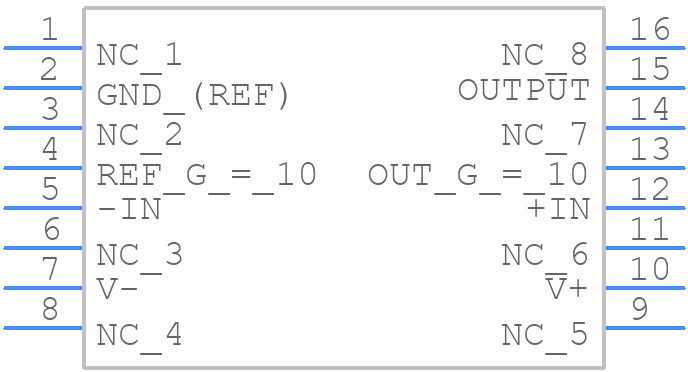

Symbol
LT1101SW#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1101SW#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SW(SOP)
click to zoom
3D Models
LT1101SW#PBF - Analog Devices - 3D model - Small Outline Packages - SW(SOP)
click to zoom

LT1101SW#PBF Details

  • Manufacturer Part Number:

    LT1101SW#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.300 INCH, PLASTIC, SO-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1620 (SW16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.011 µA

  • Common-mode Reject Ratio-Min:

    112 dB

  • Input Offset Current-Max (IIO):

    0.0011 µA

  • Input Offset Voltage-Max:

    800 µV

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.2995 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -22 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Non-linearity-Max:

    0.01%

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.642 mm

  • Slew Rate-Nom:

    0.1 V/us

  • Supply Current-Max:

    0.19 mA

  • Supply Voltage Limit-Max:

    22 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Gain-Max:

    100

  • Voltage Gain-Min:

    10

  • Width:

    7.493 mm

LT1101SW#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1101SW#PBF involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a low-ESR capacitor for the output filter and to keep the input and output capacitors close to the device.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the output capacitor is properly sized and that the input voltage is within the recommended range. If oscillations occur, try adding a small capacitor (e.g., 10nF) between the output and ground.
  • The maximum input voltage for the LT1101SW#PBF is 15V. Exceeding this voltage can cause damage to the device. It's recommended to use a voltage regulator or other protection circuitry to ensure the input voltage remains within the recommended range.
  • The LT1101SW#PBF is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's output current and voltage at high temperatures to ensure reliable operation.
  • To troubleshoot issues with the LT1101SW#PBF, start by checking the input voltage, output voltage, and output current. Verify that the component values and PCB layout meet the recommended guidelines. Use an oscilloscope to check for oscillations or noise on the output. If issues persist, try replacing the device or consulting the datasheet and application notes for further guidance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT1101SW#PBF Overview

Use the download button to access the LT1101SW#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT110, or try a keyword search, such as Instrumentation Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
