LT1101SW#TRPBF - Analog Devices

Description: IC INST AMP 1 CIRCUIT 16SO

Download LT1101SW#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

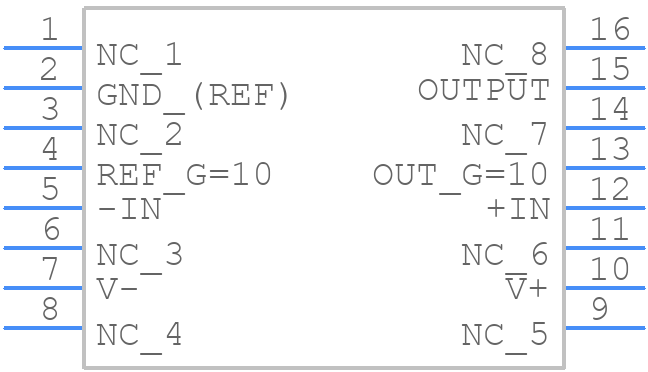

Symbol
LT1101SW#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1101SW#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SW Package 16-Lead Plastic Small Outline
click to zoom
3D Models
LT1101SW#TRPBF - Analog Devices - 3D model - Small Outline Packages - SW Package 16-Lead Plastic Small Outline
click to zoom

LT1101SW#TRPBF Details

  • Manufacturer Part Number:

    LT1101SW#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.300 INCH, PLASTIC, SO-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1620 (SW16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.011 µA

  • Common-mode Reject Ratio-Min:

    112 dB

  • Input Offset Current-Max (IIO):

    0.0011 µA

  • Input Offset Voltage-Max:

    800 µV

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.2995 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -22 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Non-linearity-Max:

    0.01%

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.642 mm

  • Slew Rate-Nom:

    0.1 V/us

  • Supply Current-Max:

    0.19 mA

  • Supply Voltage Limit-Max:

    22 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Gain-Max:

    100

  • Voltage Gain-Min:

    10

  • Width:

    7.493 mm

LT1101SW#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1101SW involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the output capacitor has a low ESR and is properly decoupled from the input. Additionally, avoid using long input traces and keep the input and output voltage rails separate.
  • The maximum ambient temperature range for the LT1101SW is -40°C to 125°C. However, the device can operate up to 150°C with derating. It's essential to ensure proper thermal management and heat sinking to prevent overheating.
  • Yes, the LT1101SW is suitable for high-reliability and aerospace applications. It's manufactured using a high-reliability process and is available in a hermetically sealed package. However, it's essential to follow the recommended design and testing guidelines to ensure the device meets the specific requirements of your application.
  • To troubleshoot issues with the LT1101SW, start by checking the input and output voltage levels, ensuring they are within the recommended range. Verify that the input and output capacitors are properly connected and meet the recommended specifications. Also, check for any signs of overheating, such as excessive current draw or high temperatures.
