Part Image

LT1102CN8#PBF - Analog Devices

Description: Instrumentation Amplifiers Hi Speed, Prec, JFET In Instr Amp (Fixed

Download LT1102CN8#PBF Model

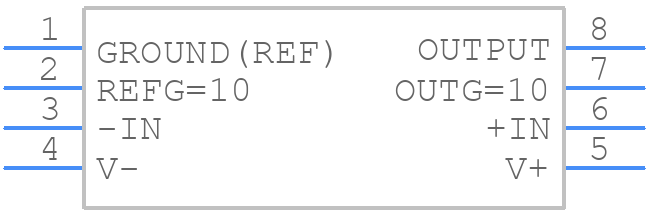

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LT1102CN8#PBF - Analog Devices PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - LT1102CN8#PBF
click to zoom

LT1102CN8#PBF Details

  • Manufacturer Part Number:

    LT1102CN8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.300 INCH, LEAD FREE, PLASTIC, DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1510 (N8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.0004 µA

  • Bandwidth (3dB)-Nom:

    3.5 MHz

  • Common-mode Reject Ratio-Min:

    81 dB

  • Input Offset Current-Max (IIO):

    0.00022 µA

  • Input Offset Voltage-Max:

    1400 µV

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    10.62 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -20 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Non-linearity-Max:

    0.0048%

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.937 mm

  • Slew Rate-Nom:

    17 V/us

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage Limit-Max:

    20 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Gain-Max:

    100

  • Voltage Gain-Min:

    10

  • Width:

    7.62 mm

LT1102CN8#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1102CN8 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and layout guidelines in the datasheet. Additionally, ensure that the output capacitor is of sufficient size and has a low ESR, and that the input capacitor is properly bypassed. Also, avoid using long input traces and keep the feedback loop as short as possible.
  • The LT1102CN8 can operate in ambient temperatures up to 70°C, but the junction temperature should not exceed 150°C. It's essential to ensure proper heat sinking and thermal management to prevent overheating.
  • Yes, the LT1102CN8 can be used in switching regulator designs, but it's essential to ensure that the device is properly bypassed and that the input and output capacitors are of sufficient size and have low ESR. Additionally, the device's switching frequency should be limited to 100 kHz or less to prevent excessive power loss.
  • To troubleshoot issues with the LT1102CN8, start by checking the input and output voltages, and ensure that the device is properly powered and biased. Check for oscillations, excessive heat, or unusual current consumption. Use an oscilloscope to examine the waveforms and identify any anomalies. Consult the datasheet and application notes for guidance on troubleshooting common issues.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT1102CN8#PBF Overview

Use the download button to access the LT1102CN8#PBF schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like LT110, or try a keyword search, such as Instrumentation Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.

Parts related to LT1102CN8#PBF

Showing 0 results

LT1102CN8#PBF Alternates

Showing results

Image Part Number Model
Part Image FT1102CN8 Force Technologies Ltd

Instrumentation Amplifier, 1 Func, 900uV Offset-Max, 3.5MHz Band Width, PDIP8

Part Image FT1102CJ8 Force Technologies Ltd

Instrumentation Amplifier, 1 Func, 900uV Offset-Max, 3.5MHz Band Width, CDIP8

Part Image LT1102CN8#PBF Linear Technology

Instrumentation Amplifier, 1 Func, 1400uV Offset-Max, 3.5MHz Band Width, PDIP8

Part Image LT1102CJ8#PBF Linear Technology

Instrumentation Amplifier, 1 Func, 1400uV Offset-Max, 3.5MHz Band Width, CDIP8

Part Image LT1102CJ8 Linear Technology

Instrumentation Amplifier, 1 Func, 1400uV Offset-Max, 3.5MHz Band Width, CDIP8

For a full list of alternate parts for LT1102CN8#PBF, check out Findchips.com
