LT1105CN8#PBF - Analog Devices

Description: Offline Switching Regulator, Converter Offline Flyback, Forward Topology Up to 200kHz 8-PDIP , 100 W, 7V to 30V, 0°C to 100°C

Download LT1105CN8#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

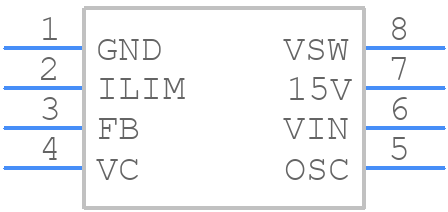

LT1105CN8#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1105CN8#PBF - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8-Lead PDIP_2026
click to zoom
3D Models
LT1105CN8#PBF - Analog Devices - 3D model - Dual-In-Line Packages - 8-Lead PDIP_2026
click to zoom

LT1105CN8#PBF Details

  • Manufacturer Part Number:

    LT1105CN8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1510 (N8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    LG-MAX; SEATED HGT-CALCULATED

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Input Voltage-Max:

    30 V

  • Input Voltage-Min:

    8 V

  • Input Voltage-Nom:

    20 V

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    10.16 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    100 °C

  • Output Current-Max:

    1.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    245

  • Seated Height-Max:

    3.937 mm

  • Surface Mount:

    NO

  • Switching Frequency-Max:

    200 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

LT1105CN8#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1105CN8 involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the output capacitor has a low ESR and is properly decoupled from the input. Additionally, avoid using long input traces and keep the input and output voltage rails separate.
  • The LT1105CN8 can operate in ambient temperatures up to 70°C. However, the device's junction temperature should not exceed 150°C. It's essential to ensure proper heat sinking and thermal management to prevent overheating.
  • Yes, the LT1105CN8 is suitable for high-reliability and automotive applications. It's built with high-quality materials and has undergone rigorous testing to ensure its reliability and performance. However, it's essential to follow the recommended operating conditions and design guidelines to ensure the device's reliability.
  • To troubleshoot issues with the LT1105CN8, start by checking the input and output voltage levels, ensuring they are within the recommended specifications. Verify that the input and output capacitors are properly connected and meet the recommended values. Also, check for any signs of overheating, such as excessive temperature or thermal shutdown.
